24V Flexible RGBW LED Light Sheet Panels

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The 24V flexible RGBW LED light sheet panels are flexible, bendable, cuttable, and connectable. They are suited to backlighting, creating bright, dotless, uniform lighting for countertops, stones, signs, and more.
• There are quick connectors on the lighting sheets, allowing for easy connection in large lighting projects. The RGBW LED light sheets use high-quality 4-in-1 5050 SMD LEDs as their light source, each incorporating white, blue, red, and green LED chips. Easy to connect to RGBW LED controller to achieve various dynamic modes, various static colors, and brightness for multiple scenes.

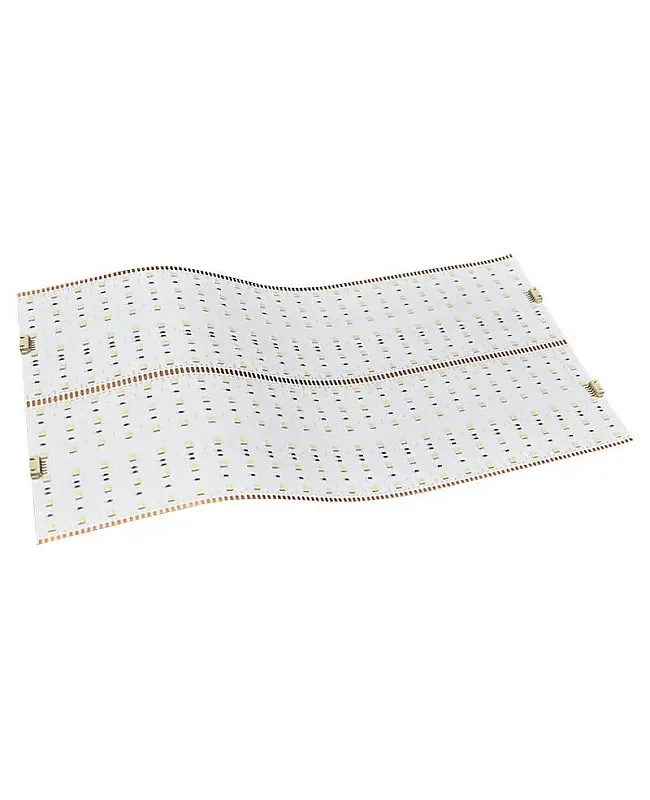

• The LEDs are mounted on a dual-layer, flexible PCB. The installer can cut it to any size using the cutting points and bend it for various projects, including curved structures, walls, ceilings, squares, and DIY applications. The back features double-sided adhesive tape, allowing for easy installation at the desired location.
• Link: RGBW LED light sheet data sheet
• Type: RGB+ white LED sheet lights
• Size( L x W ): 250 mm x 250 mm ( 9.84" x 9.84" ), 490 mm x 245 mm ( 19.29" x 9.65" )( LB-5050-288 )
• LED type: 5050 RGBW 4 In 1 SMD LEDs
• LED quantity: 150 LEDs/piece / 288 LEDs/piece ( LB-5050-288 )

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V
• Light engine: RGBW
• LumaCircuit model: LC-PNL-I8WDDQ
• Size( L x W ): 250 mm x 250 mm ( 9.84" x 9.84" ), 490 mm x 245 mm ( 19.29" x 9.65" )( LB-5050-288 )
• LED type: 5050 RGBW 4 In 1 SMD LEDs
• LED quantity: 150 LEDs/piece / 288 LEDs/piece ( LB-5050-288 )
• Working voltage: DC 24V
• Power: 24 W/piece / 48 W/piece ( LB-5050-288 )
• Emitting color: RGB + warm white ( 3000K ), RGB + natural white ( 4000K ), RGB + cool white ( 6000K )

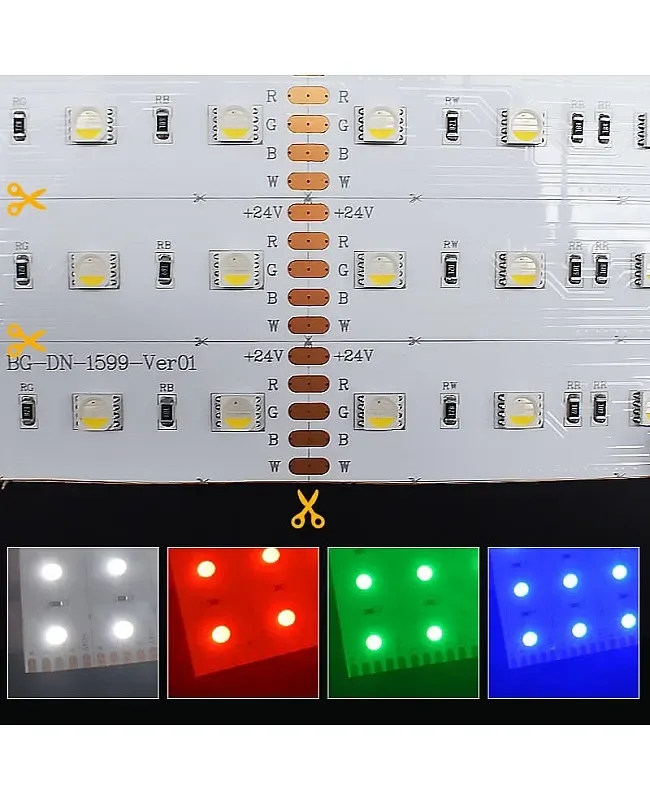

• Minimum cutting length: 50 mm x 50 mm / 20.4 mm x 122.5 mm ( LB-5050-288 )
• Beam angle: 120°
• Working temperature: - 20 ℃ + 45 ℃ ( -4 °F - 149 °F )

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The 24V flexible RGBW LED light sheet panels are flexible, bendable, cuttable, and connectable. They are suited to backlighting, creating bright, dotless, uniform lighting for countertops, stones, signs, and more.

There are quick connectors on the lighting sheets, allowing for easy connection in large lighting projects. The RGBW LED light sheets use high-quality 4-in-1 5050 SMD LEDs as their light source, each incorporating white, blue, red, and green LED chips. Easy to connect to RGBW LED controller to achieve various dynamic modes, various static colors, and brightness for multiple scenes.

The LEDs are mounted on a dual-layer, flexible PCB. The installer can cut it to any size using the cutting points and bend it for various projects, including curved structures, walls, ceilings, squares, and DIY applications. The back features double-sided adhesive tape, allowing for easy installation at the desired location.

Link: RGBW LED light sheet data sheet

Specifications

Type: RGB+ white LED sheet lights

Model: LB-5050-288

Size( L x W ): 250 mm x 250 mm ( 9.84" x 9.84" ), 490 mm x 245 mm ( 19.29" x 9.65" )( LB-5050-288 )

LED type: 5050 RGBW 4 In 1 SMD LEDs

LED quantity: 150 LEDs/piece / 288 LEDs/piece ( LB-5050-288 )

Working voltage: DC 24V

Power: 24 W/piece / 48 W/piece ( LB-5050-288 )

Emitting color: RGB + warm white ( 3000K ), RGB + natural white ( 4000K ), RGB + cool white ( 6000K )

Light Efficiency: 90 LM/W

Minimum cutting length: 50 mm x 50 mm / 20.4 mm x 122.5 mm ( LB-5050-288 )

Beam angle: 120°

Dimmable: YES

Flexible and bendable

Free cutting and splicing

The back has double-sided adhesive tape

Waterproof Level: IP20 non-waterproof, IP54 waterproof

Storage temperature; - 20 ℃ + 65 ℃ ( -4 °F - 113 °F )

Working temperature: - 20 ℃ + 45 ℃ ( -4 °F - 149 °F )

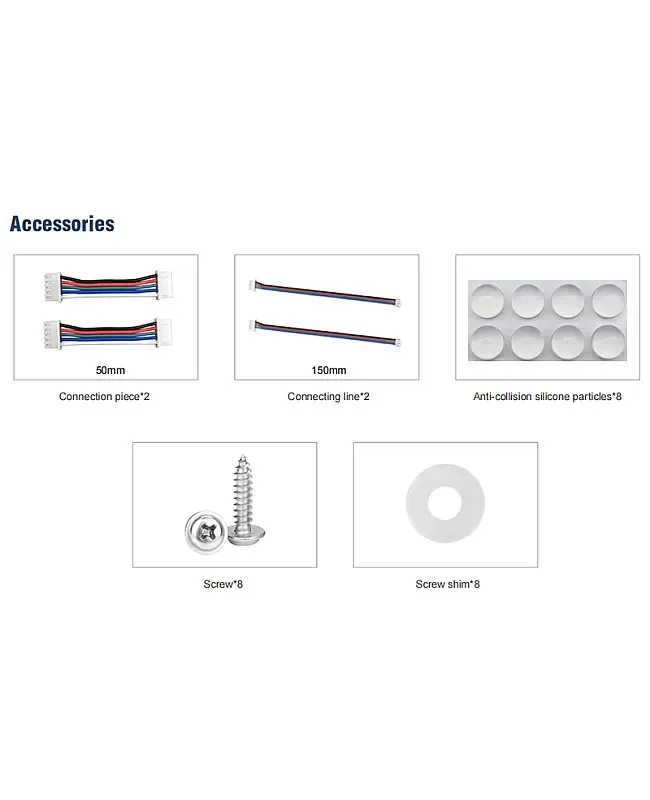

Includes

1 x DC24V RGBW LED light sheet

2 x connection cables

2 x input cables

4 / 8 x Anti-collision silicone particles
