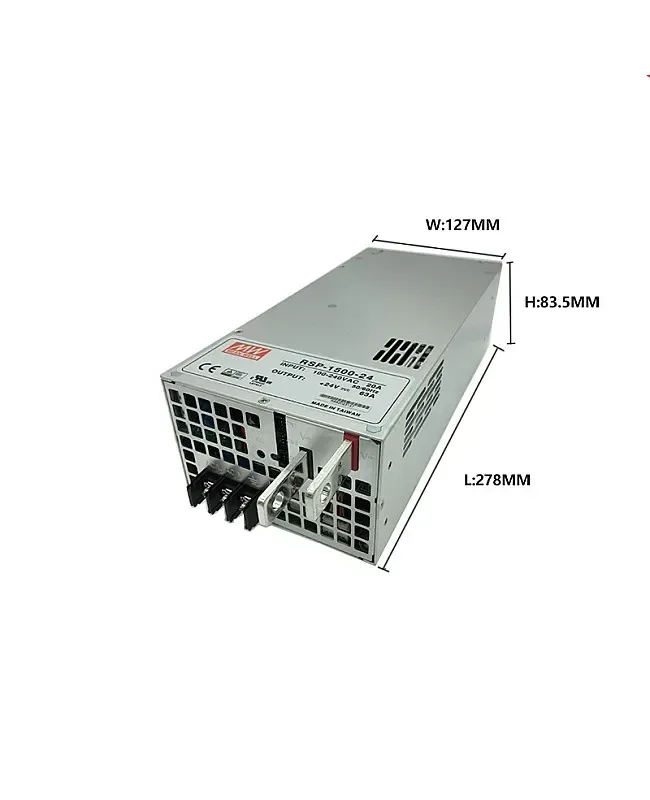

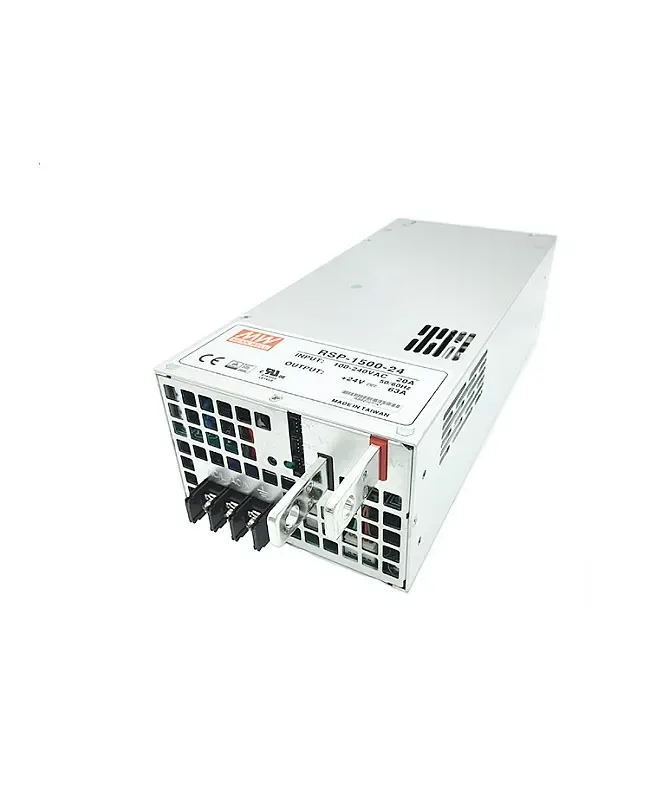

RSP 1500 24V DC Power Supply
LumaCircuit offers RSP 1500 24V DC Power Supply as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Universal AC Input/Full Range Built-in Active PFC Function High Efficiency Up To 91% The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 24V power supply is a single-output, enclosed AC/DC power supply suitable for various applications that require stable and efficient DC power. The output voltage can be selected from 5V, 12V, 15V, and 24V, and the maximum output power reaches up to 1500W. Those series DC power supplies operate with an input voltage range of AC90V to AC264V and offer models with the DC output demanded by the industry. Each model is cooled by the built-in fan, which operates at temperatures up to 70℃.
- Universal AC Input/Full Range
- Built-in Active PFC Function
- High Efficiency Up To 91%
- Forced Air Cooling By Built-in DC Fan
- Output Voltage Programmable
- Active Current Sharing Up To 6000W(3+1)
- Built-in Remote ON-OFF Control Remote Sense Auxiliary Power Power OK Signal
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 5 V / 12 V / 48 V

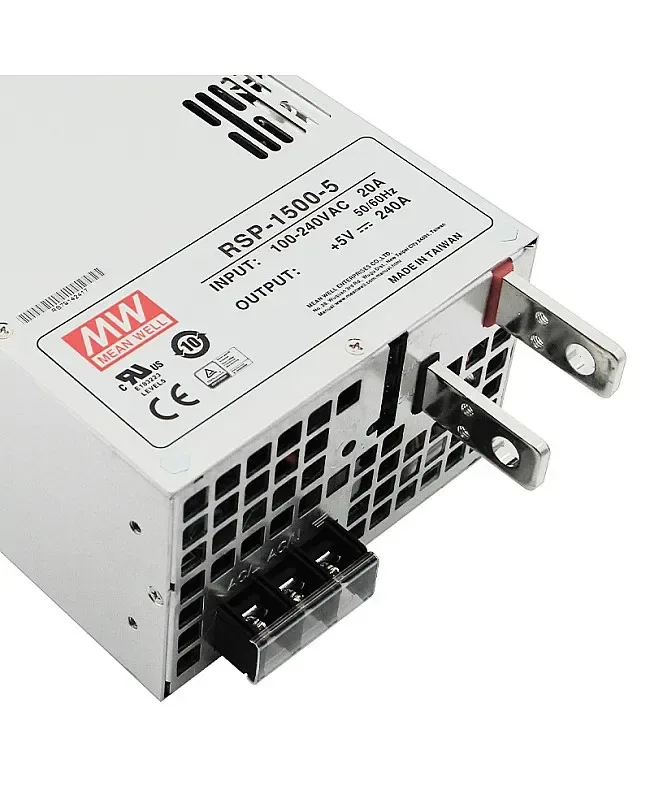

- Models: -5(DC5V), -12(DC12V), -15(DC15V), -24(DC24V), -48(DC48V)
- Input Voltage: 90
- Frequency Range: 47- 63Hz
- Power Factor: 0.95 0.98/ At Full Load
- AC Current: 17A 8A
- Output Voltage: DC5V(-5), DC12V(-12), DC15V(-15), DC24V(-24), DC48V(-48)
- Rated Current: 240A(-5), 124A((-12), 100A((-15), 63A((-24), 32A(-48)
- Current Range: 0-240A(-5), 0-125A(-12), 0-100A(-15), 0-63A(-24), 0-32A(-48)
- Rated Power: 1200W(-5), 1500W((-12), 1500W(-15), 1512W(-24), 1536W(-48)
- Voltage ADJ.Range: 4.5-5.5V(-5), 10-13.5V(-12), 13.5-16.5(-15), 20-26.4(-24), 43-56V(-48)
- Working Temperature: -20℃-+70℃
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 24V power supply is a single-output, enclosed AC/DC power supply suitable for various applications that require stable and efficient DC power. The output voltage can be selected from 5V, 12V, 15V, and 24V, and the maximum output power reaches up to 1500W. Those series DC power supplies operate with an input voltage range of AC90V to AC264V and offer models with the DC output demanded by the industry. Each model is cooled by the built-in fan, which operates at temperatures up to 70℃. The offers extensive design flexibility by incorporating various built-in functions, including output programming, active current sharing, remote ON-OFF control, and auxiliary power.
Universal AC Input/Full Range
Built-in Active PFC Function
High Efficiency Up To 91%
Forced Air Cooling By Built-in DC Fan
Output Voltage Programmable
Active Current Sharing Up To 6000W(3+1)
Built-in Remote ON-OFF Control Remote Sense Auxiliary Power Power OK Signal
Applications: Factory Control or Automation Apparatus, Test and Measurement Instrument, Laser-Related Machine, Burn-in Facility, Digital Broadcasting, RF Application, etc
Specifications
Type: 1500W Single Output DC Power Supply
Models: -5(DC5V), -12(DC12V), -15(DC15V), -24(DC24V), -48(DC48V)
Input Voltage: 90
Frequency Range: 47- 63Hz
Power Factor:0.95 0.98/ At Full Load
Efficiency: 80%(-5), 87%(-12), 87%(-15), 90%(-24), 91%(-48)
AC Current: 17A 8A
Output Voltage: DC5V(-5), DC12V(-12), DC15V(-15), DC24V(-24), DC48V(-48)
Rated Current: 240A(-5), 124A((-12), 100A((-15), 63A((-24), 32A(-48)
Current Range: 0-240A(-5), 0-125A(-12), 0-100A(-15), 0-63A(-24), 0-32A(-48)
Rated Power: 1200W(-5), 1500W((-12), 1500W(-15), 1512W(-24), 1536W(-48)
Ripple & Noise: p
Voltage ADJ. Range: 4.5-5.5V(-5), 10-13.5V(-12), 13.5-16.5(-15), 20-26.4(-24), 43-56V(-48)
SETUP RISE TIME At Full Load
HOLD UP TIME: At Full Load(-5, -12), At Full Load(-15, -24), At Full Load(-48)
Working Temperature: -20℃-+70℃
Storage Temp., Humidity: -40℃-+85℃, 10-95% RH Non-condensing
Working Humidity: 20-90% RH Non-condensing
Vibration: 10-500Hz, 2G Each along the X, Y, and Z axes
Overload Protection
Over-Voltage Protection
Over Temperature Protection
Safety Standards: -1, CAN/CSA.2 NO.62368-1, TUV BS EN/-1, BSMI -1, AS.1, EAC TP TC 004 Approved
Includes
1 * RSP 1500 Power Supply
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
