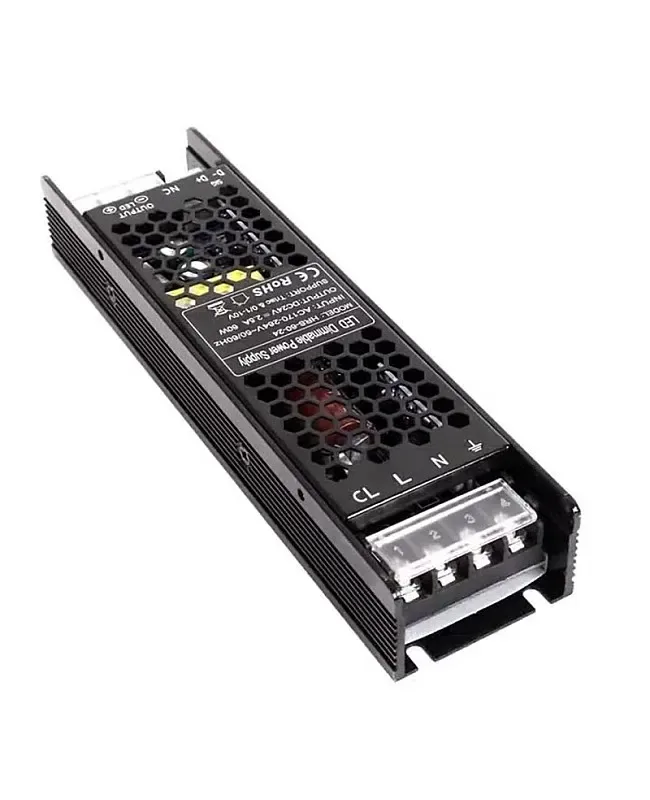

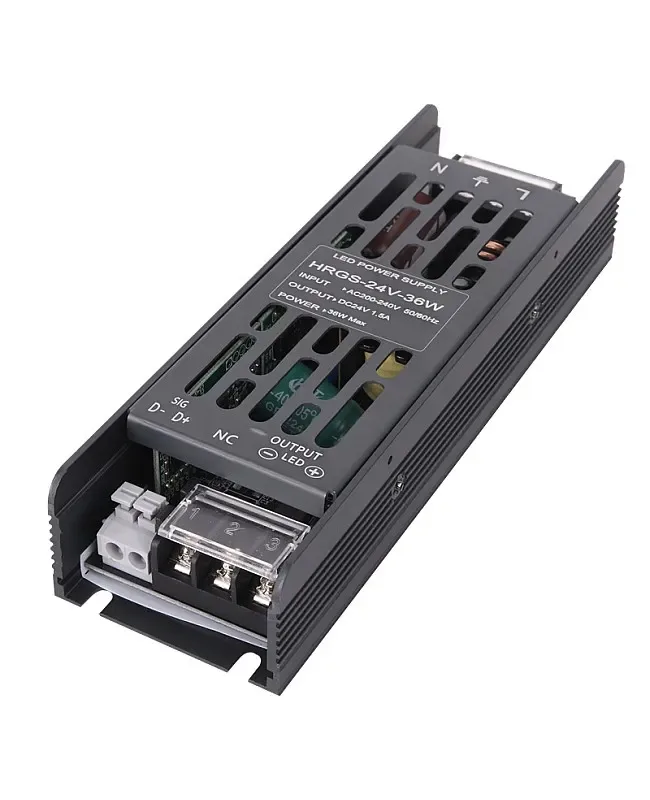

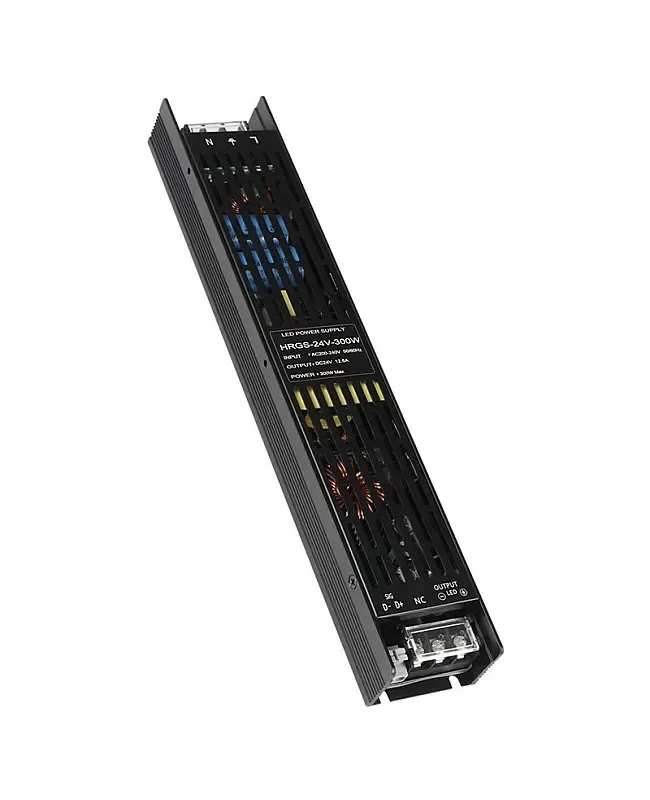

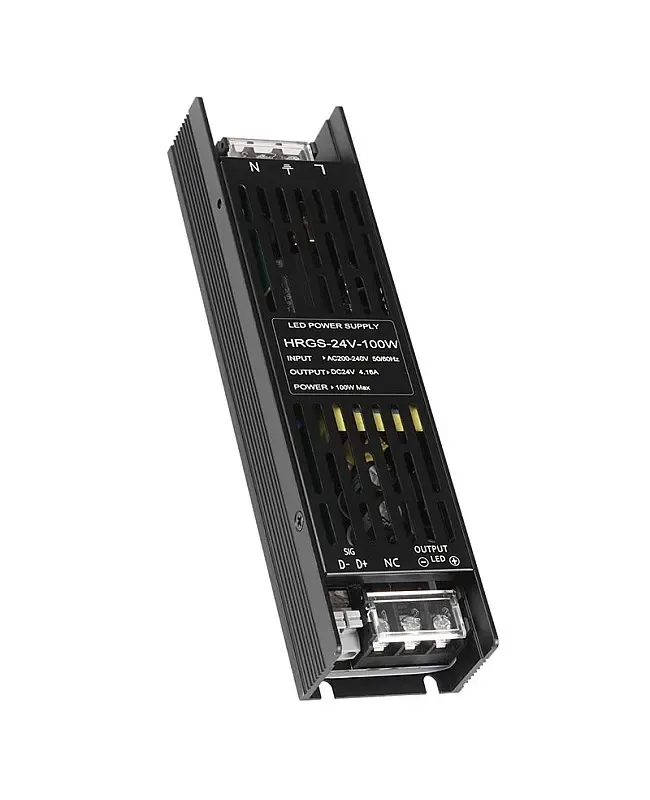

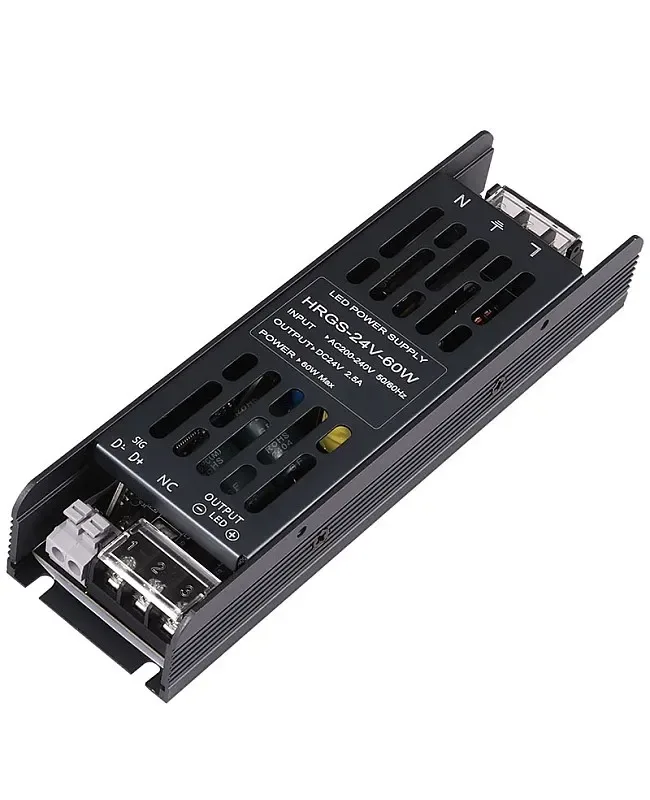

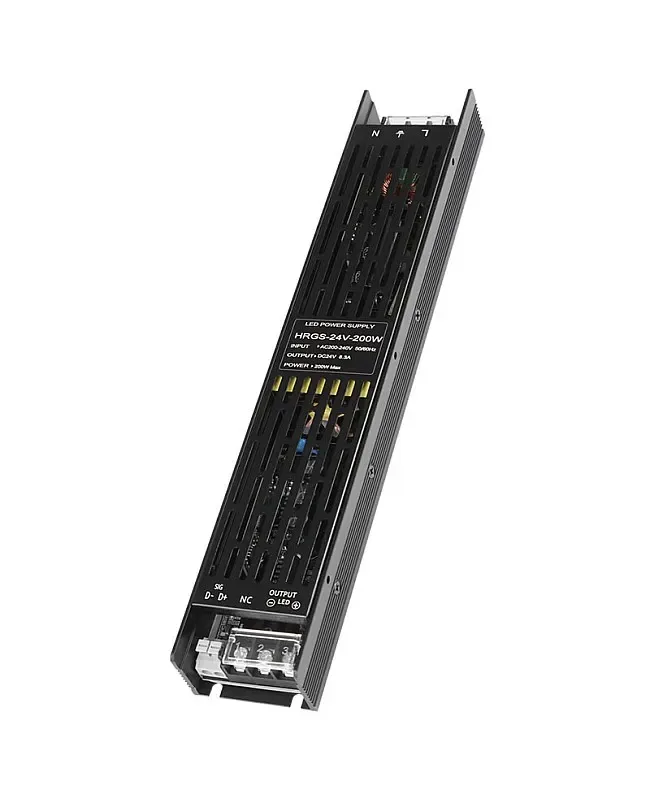

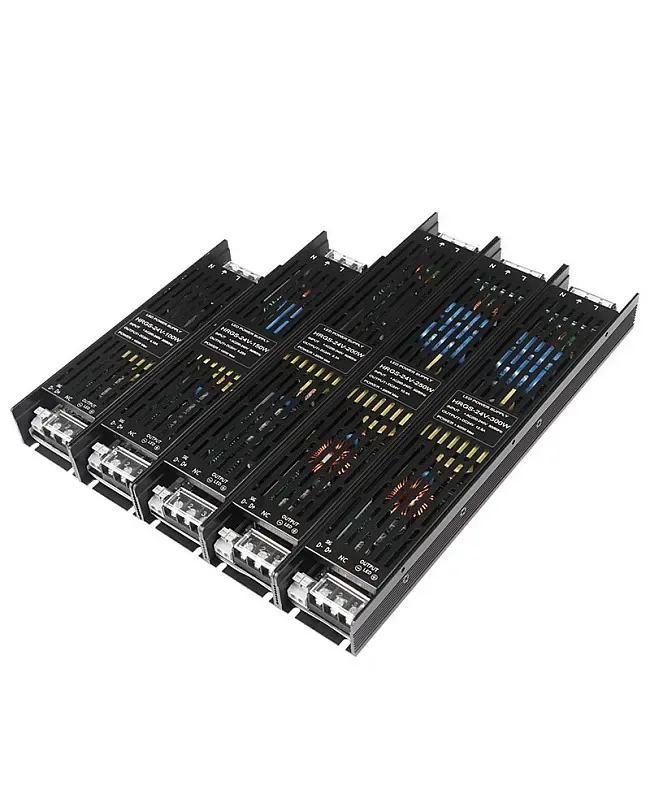

TRIAC / 0 10V 2 In 1 Constant Voltage Dimmable LED Drivers
LumaCircuit offers TRIAC / 0 10V 2 In 1 Constant Voltage Dimmable LED Drivers as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Support with 0-10V / 1-10V resistance dimming TRIAC and 0-10V automatic recognition For above 200W, trailing-edge TRIAC or 0-10V dimming is recommended for enhanced stability. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Compatible with leading-edge and trailing-edge triac dimming
- Support with 0-10V / 1-10V resistance dimming
- TRIAC and 0-10V automatic recognition
- For above 200W, trailing-edge TRIAC or 0-10V dimming is recommended for enhanced stability.
- Dimming range: TRIAC: 40-200V (subject to the connected device); 0-10V: 0.8-9.5V (subject to the connected device)
- Dimming depth: TRIAC: 0.5-1.0%(subject to the connected device); 0-10V: 0.1-0.5% (subject to the connected device)
- Compatible with Lutron and Leviton dimmers
- Type: TRIAC / 0-10V constant voltage dimmable LED power supply
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 5 V
- Size ( L x W x H ): 167 x 50 x 30 mm ( 60W ), 188 x 50 x 30 mm ( 100W ), 230 x 50 x 30 mm ( 150W ), 287 x 50 x 30 mm ( 200W ), 287 x 50 x 30 mm ( 250W ), 287 x 50 x 30 mm ( 300W )
- Input voltage: -130V / -260V
- Working frequency: 50/60Hz
- Output voltage: DC12V/DC24V
- Output current: 5A(12V/60W), 2.5A(24V/60W), 8.33A(12V/100W), 4.16A(24V/100W), 12.5A(12V/150W), 6.25A(24V/150W), 16.6A(12V/200W), 8.3A(24V/200W), 20.8A(12V/250W), 10.4A(24V/250W), 25A(12V/300W), 12.5A(24V/300W),

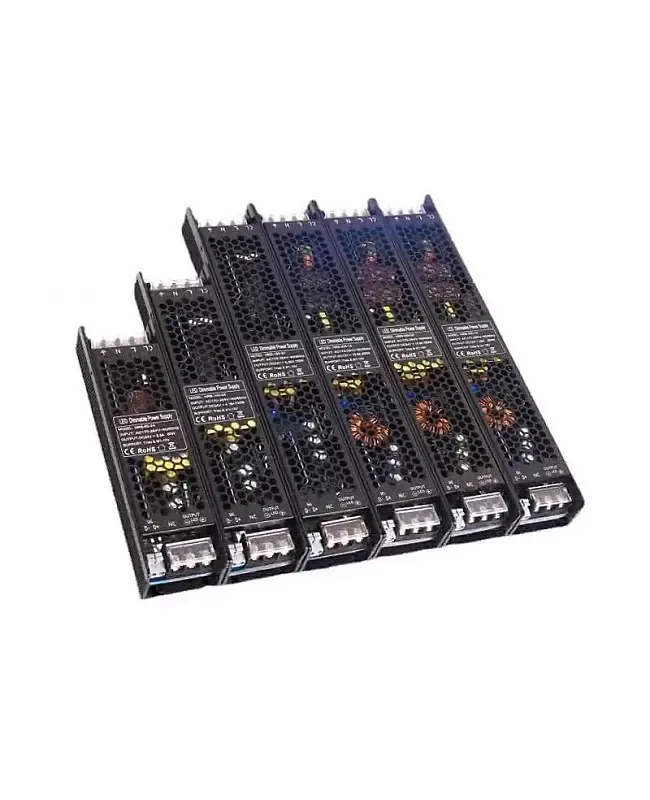

- Power: 60W, 100W, 150W, 200W, 250W, 300W
- Output efficiency: >80% ( 30-200W), >85%(250-300W)
- LED Indicator: Steady green light
- IP rating: IP20 non-waterproof, IP67 waterproof
- Working temperature: -20℃-+50℃
- LumaCircuit model: LC-PWR-X0714O

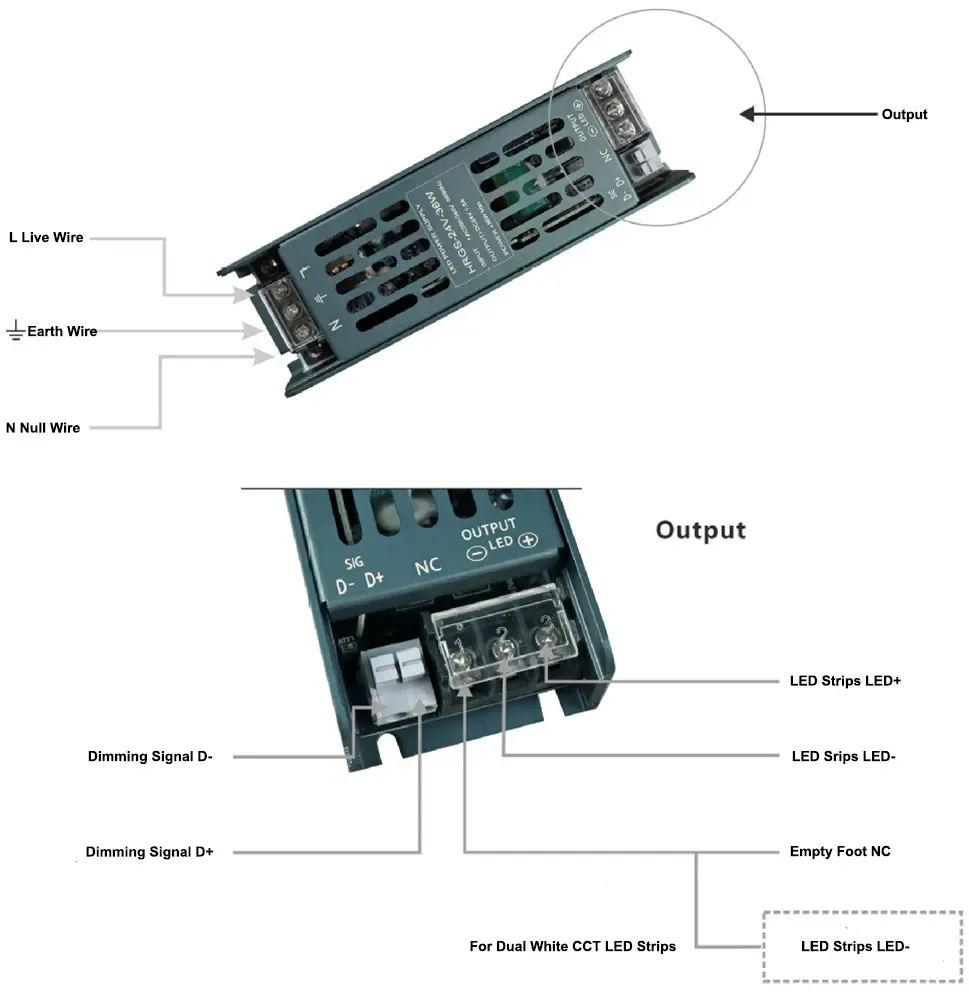

Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Compatible with leading-edge and trailing-edge triac dimming
Support with 0-10V / 1-10V resistance dimming
TRIAC and 0-10V automatic recognition
For above 200W, trailing-edge TRIAC or 0-10V dimming is recommended for enhanced stability.
Dimming range: TRIAC: 40-200V (subject to the connected device); 0-10V: 0.8-9.5V (subject to the connected device)
Dimming depth: TRIAC: 0.5-1.0%(subject to the connected device); 0-10V: 0.1-0.5% (subject to the connected device)
Compatible with Lutron and Leviton dimmers
Specifications
Type: TRIAC / 0-10V constant voltage dimmable LED power supply
Size ( L x W x H ): 167 x 50 x 30 mm ( 60W ), 188 x 50 x 30 mm ( 100W ), 230 x 50 x 30 mm ( 150W ), 287 x 50 x 30 mm ( 200W ), 287 x 50 x 30 mm ( 250W ), 287 x 50 x 30 mm ( 300W )
Input voltage: -130V / -260V
Working frequency: 50/60Hz
Output voltage: DC12V/DC24V
Output current: 5A(12V/60W), 2.5A(24V/60W), 8.33A(12V/100W), 4.16A(24V/100W), 12.5A(12V/150W), 6.25A(24V/150W), 16.6A(12V/200W), 8.3A(24V/200W), 20.8A(12V/250W), 10.4A(24V/250W), 25A(12V/300W), 12.5A(24V/300W),
Power: 60W, 100W, 150W, 200W, 250W, 300W
PF: 0.5-0.6
Output efficiency: >80% ( 30-200W), >85%(250-300W)
Load Ratio: 60-150W: 80% max; 200-300W: 75% max
LED Indicator: Steady green light
IP rating: IP20 non-waterproof, IP67 waterproof
Over-load protection
Short-circuit protection
Humidity: Below 90% ( no icing)
Working temperature: -20℃-+50℃
Includes
1* TRIAC dimming LED strip driver
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
