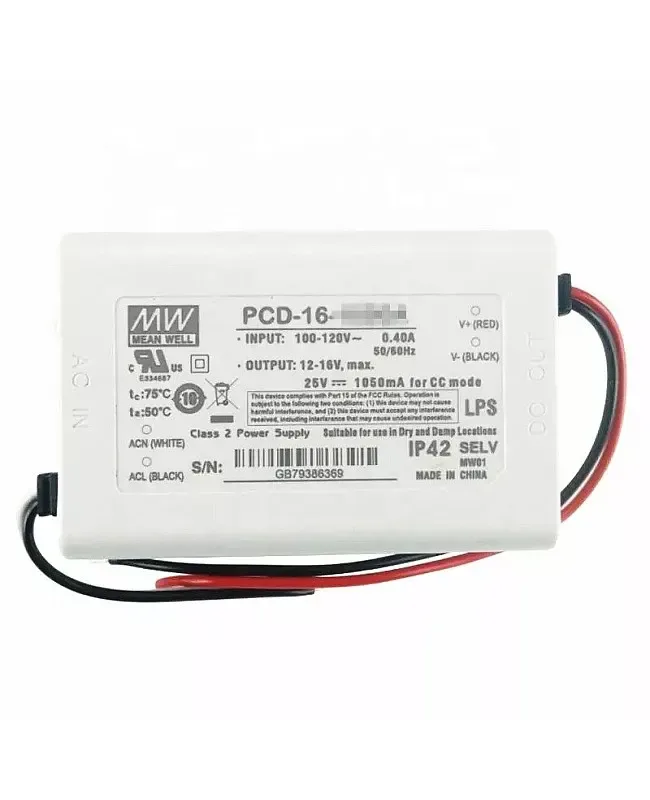

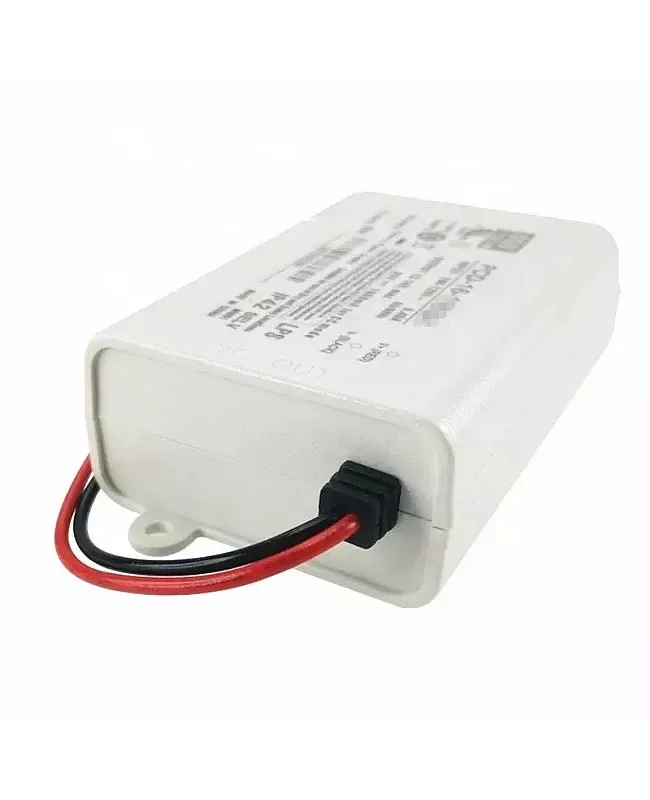

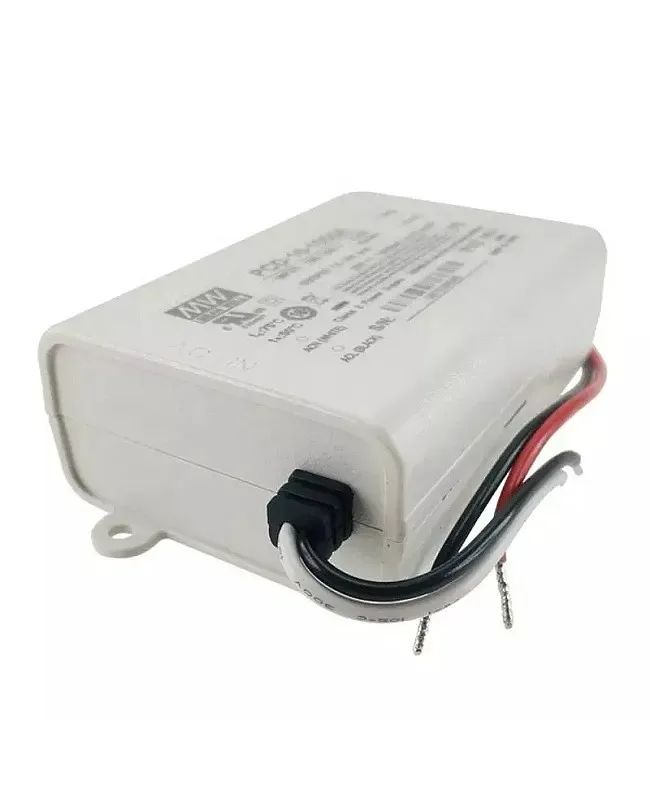

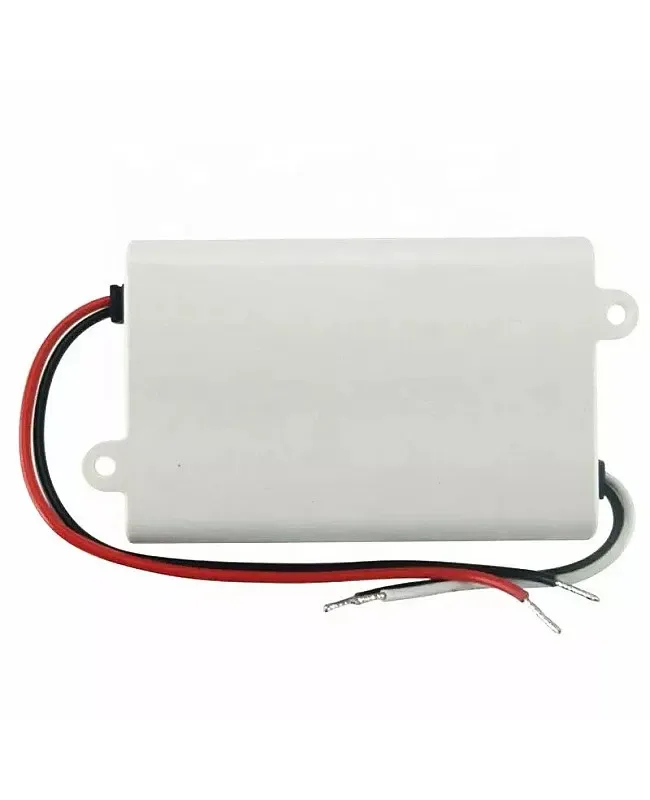

PCD 16 Constant Current Triac Dimming LED Driver

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• Work With Leading Edge And Trailing Edge Triac Dimmers
• Built-in Active PFC Function
• Cooling By Free Air Convection
• Full Isolated Plastic Case
• Class II Power Unit, no FG
• 100% Full Load Burn-in Test
• Low Cost, High Reliability
• Suitable For LED Related Fixture Or Appliance

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24-48 V / 24 V / 12 V / 5 V
• LumaCircuit model: LC-PWR-8IDC4L
• Size: 84*57*29.5mm(L*W*H)
• Models: -350, -700, -1050, -1400
• Rated Current: (-350), (-700), (-1050), (-1400)
• Working Voltage Range: 24-48V(-350), 16-24V(-700), 12-16V(-1050), 8-12V(-1400)
• Current Accuracy: ±5%
• Rated Power: 16.8W
• No Load Output Voltage(Max): 60V(-350), 35V(-700), 25V(-1050), 16V(-1400)
• Frequency Range: 47- 63Hz
• Power Factor: PF>0.9 PF>0.9 PF>0.9/ At Full Load
• AC Current: 0.4A 0.2A 0.15A

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

AC Phase-Cut Dimming

Work With Leading Edge And Trailing Edge Triac Dimmers

Or Models Available

Built-in Active PFC Function

Constant Current Design

Cooling By Free Air Convection

Full Isolated Plastic Case

Class II Power Unit, no FG

IP42 Design

100% Full Load Burn-in Test

Low Cost, High Reliability

Suitable For LED Related Fixture Or Appliance

Specifications

Model

Brand

Size: 84*57*29.5mm(L*W*H)

Models: -350, -700, -1050, -1400

Type: A: With AC Input 90 B: With AC Input 180

Rated Current: (-350), (-700), (-1050), (-1400)

Working Voltage Range: 24-48V(-350), 16-24V(-700), 12-16V(-1050), 8-12V(-1400)

Current Accuracy: ±5%

Rated Power: 16.8W

Ripple & Noise (Max.) note.1: 4.-p(-350), 2.-p(-700), 2.-p(-1050), p(-1400)

No Load Output Voltage(Max): 60V(-350), 35V(-700), 25V(-1050), 16V(-1400)

Setup Time At Full Load

Frequency Range: 47- 63Hz

Power Factor: PF>0.9 PF>0.9 PF>0.9/ At Full Load

Total Harmonic Distortion: THD<20% When Output Loading ≥70% And Output Loading ≥80% At Input

Efficiency: 84.5%(-350), 84.5%(-700), 84%(-1050), 82.5%(-1400)

AC Current: 0.4A 0.2A 0.15A

Inrush Current: Cold Start 20A At

Max NO. Of PSUs On 16A Circuit Breaker: A Series: 58 Units At B Series: 128 Units At

Leakage Current: <0.

Working Temperature: -30℃-+50℃

Working Humidity: 20-95% RH Non-condensing

Storage Temp., HUMIDITY: -40-+80℃, 10-95% RH

Temp. Coefficient: ±0.03%/℃(0-50℃)

Vibration: 10-500Hz, 2G./1 cycle, period for 72 min each along X, Y, and Z axes

Safety Standards CSA.2 No.250.0-08; ENEC BS EN/EN -1, BS EN/EN 61347-2-13 Independent, BS EN/(For B Type Only), EAC TP TC 004, IP42 Approved

Short Circuit Protection

Over Temperature Protection

Includes

1 * Triac Dimming Driver
