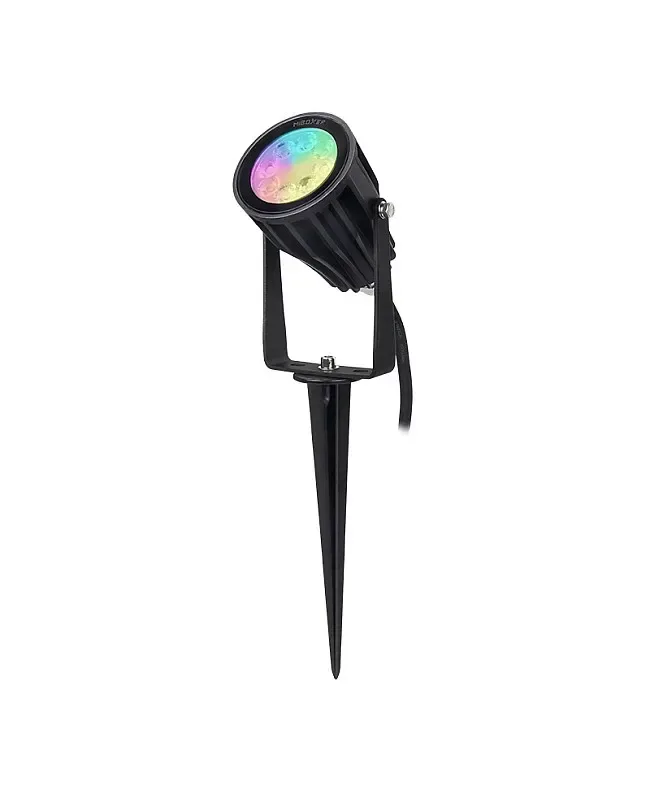

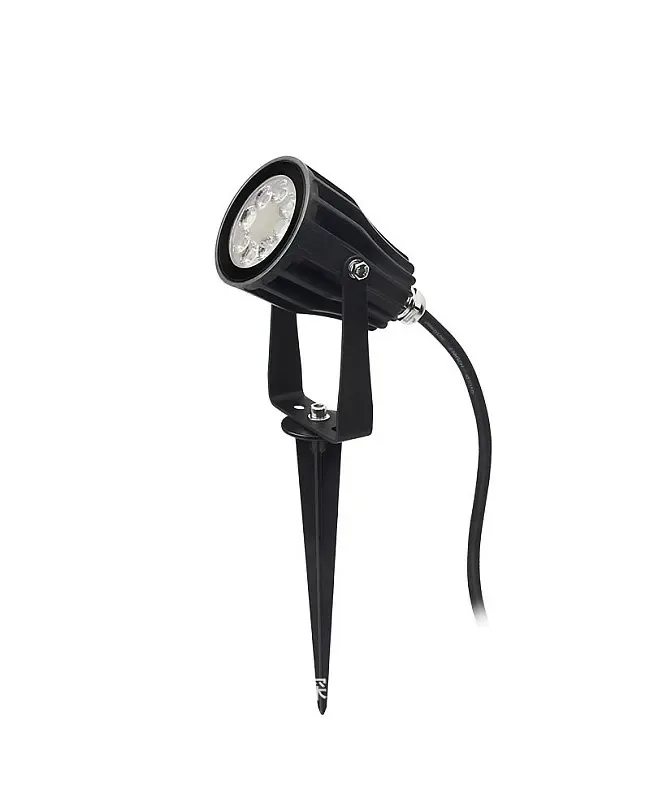

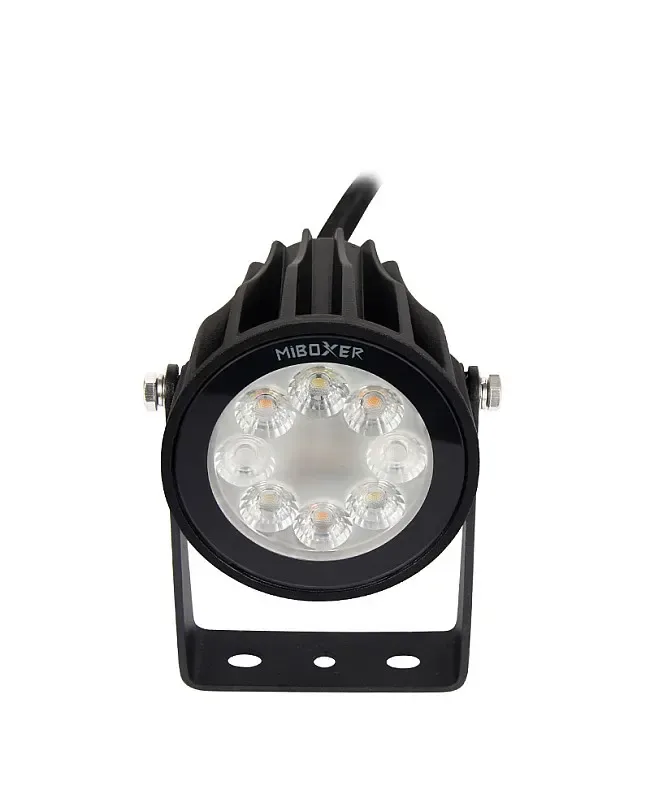

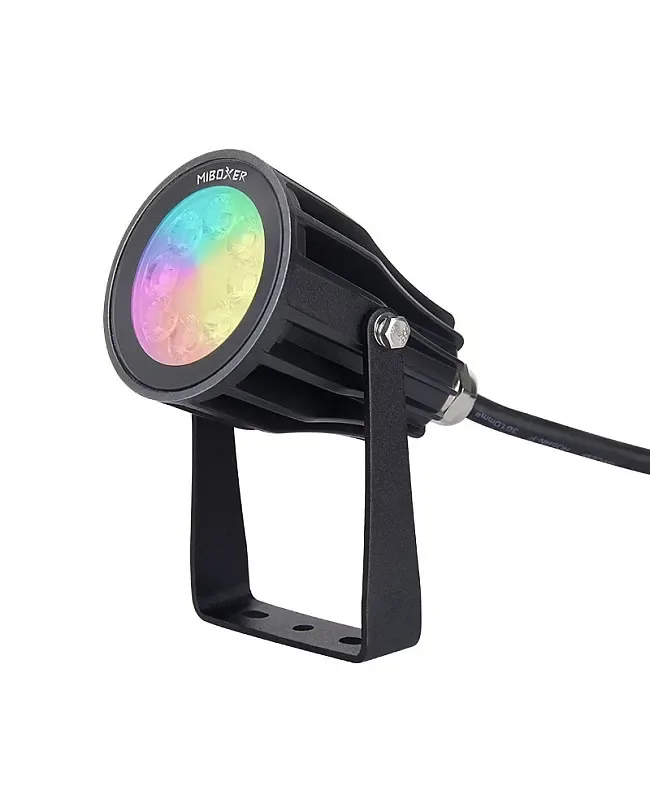

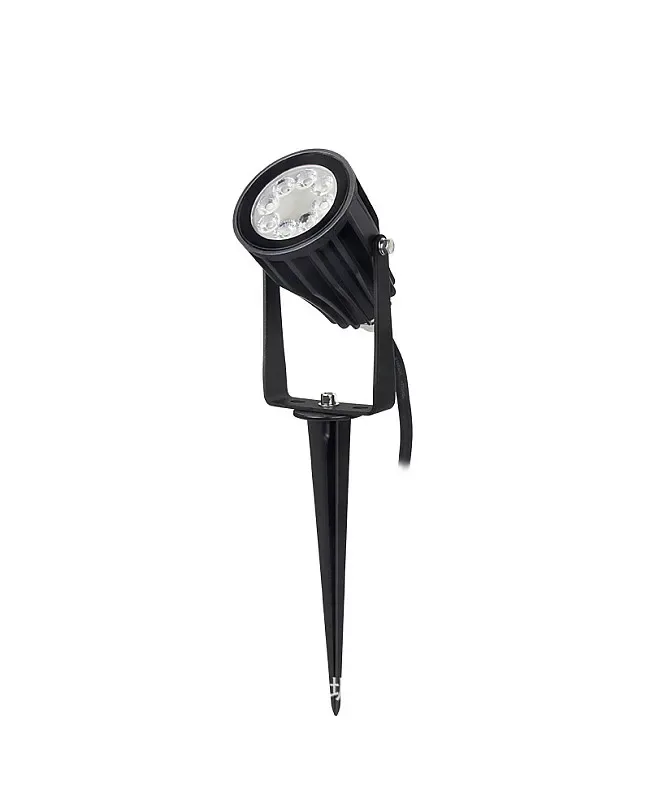

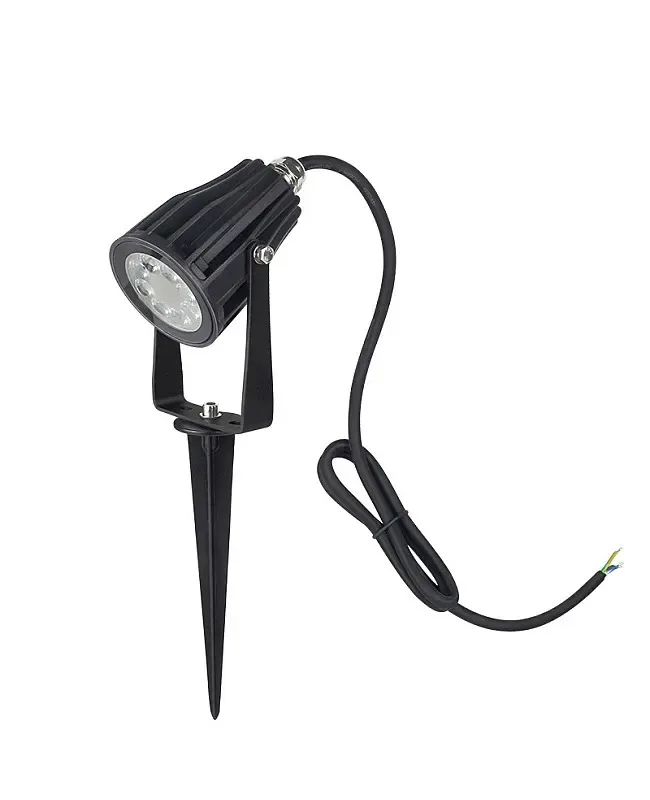

6W RGB+CCT Smart Spot Lights Exterior
LumaCircuit offers 6W RGB+CCT Smart Spot Lights Exterior as a configurable spotlight for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: -240V, 50/60Hz Emitting Color: RGB + CCT Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller User Manual
- Working Voltage: -240V, 50/60Hz
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 90LM/W
- Color Saturation, Color Temperature, And Brightness Adjustable
- Compatible With 2.4G RF Remote Controls wireless controller T4, WL
- Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- Size: 71*84mm(L*H)
- Color: Black
- Working Voltage: -240V, 50/60Hz
- Power: 6W
- Emitting Color: RGB + CCT
- Color Temperature: 2700 K- 6500 K
- Compatible With 2.4G RF Remote Controls: wireless controller T4, WL
- Beam Angle: 25°
- CRI: >80
- IP Rate: IP66
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller User Manual
Specifications
Size: 71*84mm(L*H)
Color: Black
Working Voltage: -240V, 50/60Hz
Power: 6W
Emitting Color: RGB + CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 550LM
Luminous Efficiency: 90LM/W
16 Million Colors Available
Color Saturation, Color Temperature, And Brightness Adjustable
Compatible With 2.4G RF Remote Controls wireless controller T4, WL
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Beam Angle: 25°
Illumination Distance: >10m
IP Rate: IP66
RF: 2.
Control Distance: ≤30m
Signal Transmitting And Modes Synchronization

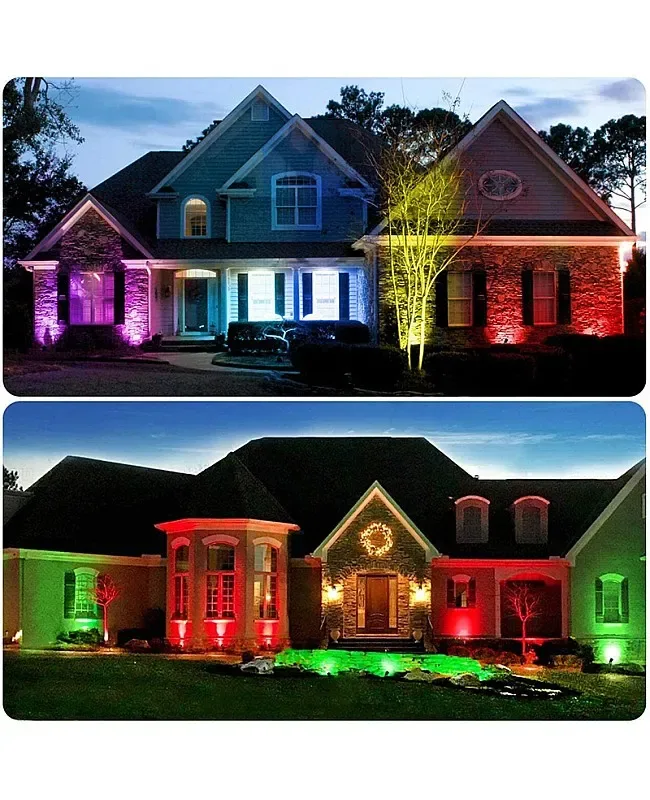

Applications: Garden, Yard, Road, Greenbelt, Plaza, Park, Plant Landscape Lighting
Remote Control Sold Separately
Working Temperature: -20-45℃
Includes
1 * wireless controller 6W Exterior Spot Light
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
