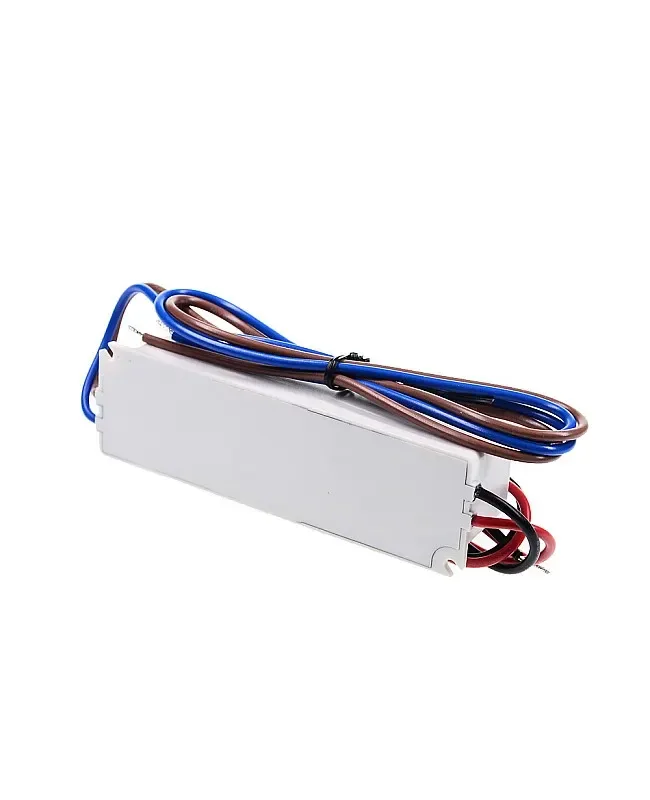

20 W 12 V DC waterproof LED power supply
LumaCircuit offers 20W Waterproof 12V DC Power Supply Single Output as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Universal AC Input Full Range Withstand Surge Input For 5 Seconds Protections: Short Circuit Overload Over Voltage The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12V DC power supply has a single output design offering various output voltage products from DC5V to DC24V. The LED power supply has a universal AC input, with a full range from AC90V to AC370V, and is easy to connect to the power system directly. With a fully isolated plastic case and fully encapsulated with an IP67 waterproof level design, the installer can use them in rainy, wet or other harsh situations. The installer can use them for waterproof LED tape lights, decoration, advertisement devices, etc.
- Universal AC Input Full Range
- Withstand Surge Input For 5 Seconds
- Protections: Short Circuit Overload Over Voltage
- Cooling By Free Air Convection
- Fully Encapsulated With IP67 Waterproof
- Fully Isolated Plastic Case
- Class II Power Unit, NO FG
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V
- LumaCircuit model: LC-PWR-8MBFUR
- Size: 118*35*26mm(L*W*H)
- Input Voltage: 90- /127
- Input Voltage: DC5V, DC12V, DC15V, DC24V
- Rated Current: 3A(5V), 1.67A(12V), 1.33A(15V), 0.84A(24V)
- Rated Power: 15W(5V), 20W(12V), 20W(15V), 20.2W(24V)
- Frequency Range: 47- 63Hz
- AC Current: 0.55A 0.35A
- Leakage Current: 0.
- Working Temperature: -30℃-70℃
- Working Humidity: 20-90% RH Non-condensing
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 12V DC power supply has a single output design offering various output voltage products from DC5V to DC24V. The LED power supply has a universal AC input, with a full range from AC90V to AC370V, and is easy to connect to the power system directly. With a fully isolated plastic case and fully encapsulated with an IP67 waterproof level design, the installer can use them in rainy, wet or other harsh situations. The installer can use them for waterproof LED tape lights, decoration, advertisement devices, etc.
Constant Voltage Design
Universal AC Input Full Range
Withstand Surge Input For 5 Seconds
Protections: Short Circuit Overload Over Voltage
Cooling By Free Air Convection
Small And Compact Size
Fully Encapsulated With IP67 Waterproof
Fully Isolated Plastic Case
Class II Power Unit, NO FG
Class 2 Power Unit
Suitable For LED Related Fixture Or Appliance
100% Full Load Burn-in Test
Low Cost, High Reliability
Link: User Manual

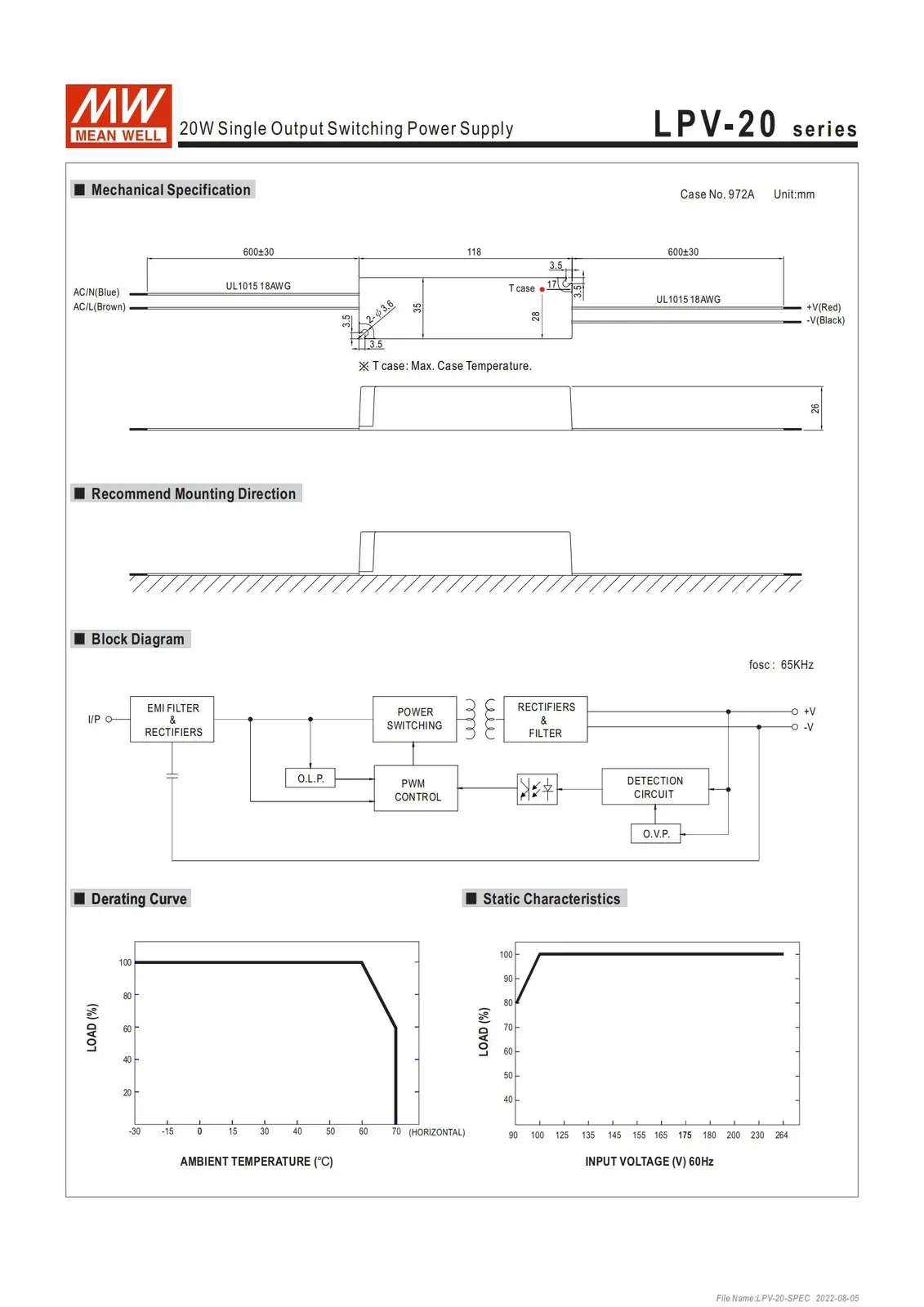

Specifications
Model: -5, -12, -15, -24
Size: 118*35*26mm(L*W*H)
Input Voltage: 90- /127
Input Voltage: DC5V, DC12V, DC15V, DC24V
Rated Current: 3A(5V), 1.67A(12V), 1.33A(15V), 0.84A(24V)
Rated Power: 15W(5V), 20W(12V), 20W(15V), 20.2W(24V)
Hold UP Time At Full Load
Frequency Range: 47- 63Hz
Efficiency: 77%(5V), 81%(12V), 83%(15V), 83%(24V)
AC Current: 0.55A 0.35A
Leakage Current: 0.
Overload: 110-150% Rated Output Power
Working Temperature: -30℃-70℃
Working Humidity: 20-90% RH Non-condensing
Vibration: 10-500Hz, 2G./1 cycle, period for each along X, Y, Z axes
Safety Standards CSA.2 No.207 CAN/CSA.2 No.223 IEC/BS EN/EN 62368-1, EAC TP TC 004. IP67 Approved
Withstand Voltage: I/P-O/P
Isolation Resistance: I/P-O/P:>100M Ohms / / 25℃ / 70%RH
Includes
1 * 12V Power Supply
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
