Product details

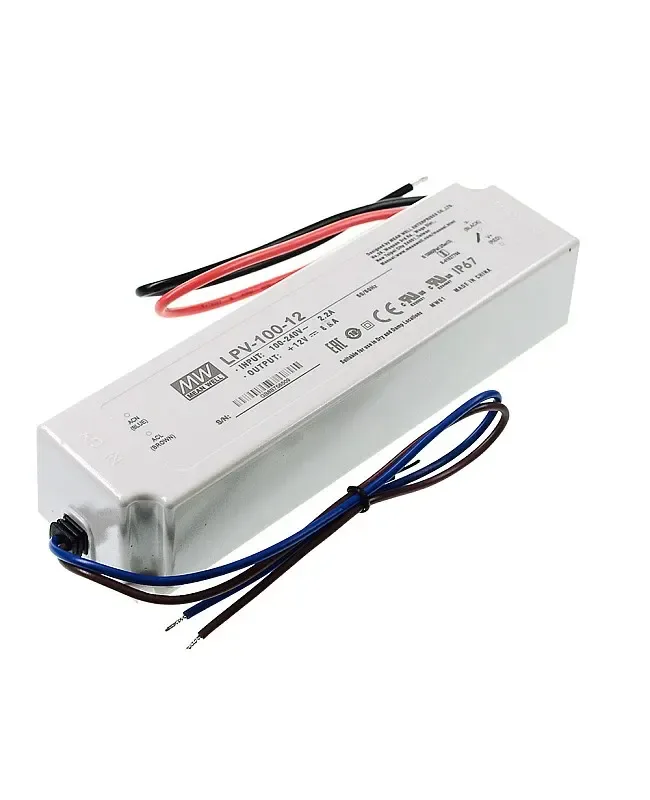

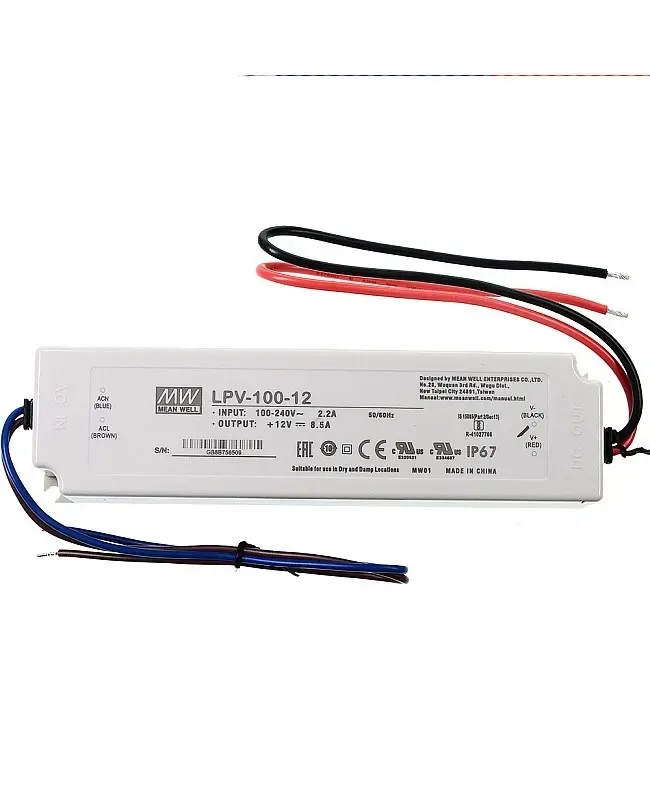

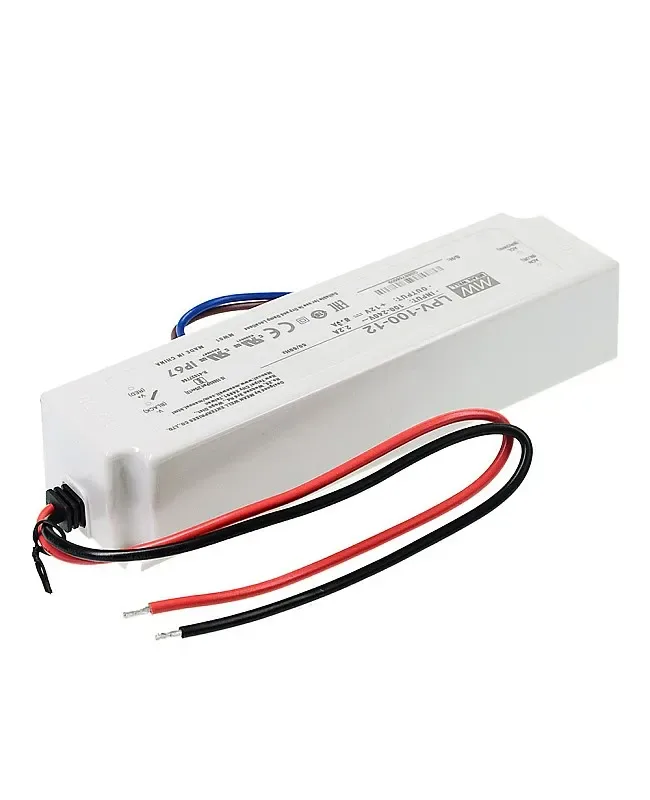

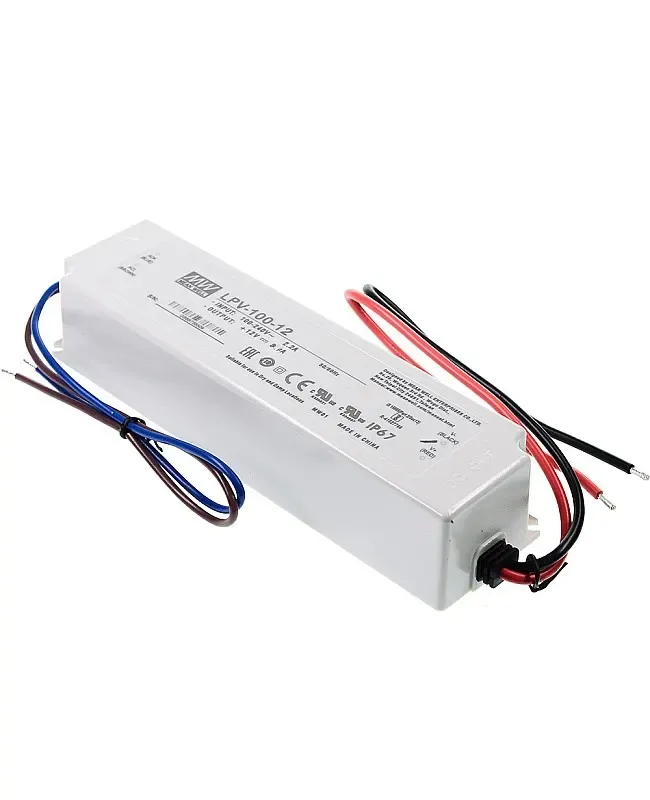

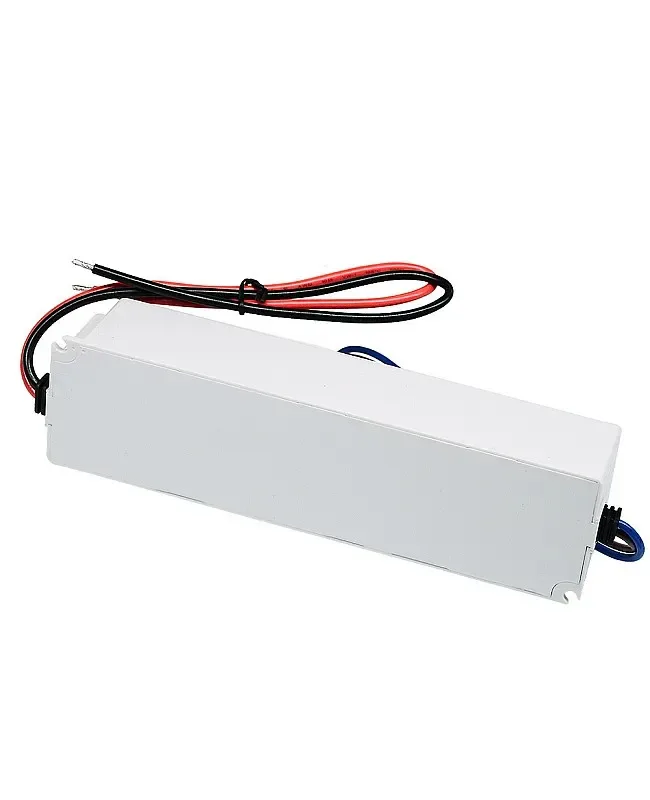

100 W IP67 LED power supply
LumaCircuit offers LPV 100 IP67 Waterproof LED Driver as a configurable LED driver or power supply for project builds. Typical applications include Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Universal AC Input Full Range Fully Encapsulated With IP67 Level Waterproof Withstand Surge Input For 5 Seconds The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The series LED drivers, epoxy encapsulated with IP67 level for harsh conditions, can be used in a rainy or wet location. With constant voltage design and universal AC input, the input range is from to making it easy to connect directly to the public power system. Various output voltage and loading power waterproof LED drivers are available; the installer can choose the or with a max loading power of up to 100W. The installer can use it for LED decoration, LED-related fixtures, or advertisement devices, etc.
- Universal AC Input Full Range
- Fully Encapsulated With IP67 Level Waterproof
- Withstand Surge Input For 5 Seconds
- Protections: Short Circuit Overload Over Voltage
- Fully Isolated Plastic Case
- Cooling By Free Air Convection
- 100% Full Load Burn-in Test
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 48 V / 12 V / 24 V / 36 V
- LumaCircuit model: LC-PWR-ACBVU1
- Size: 190*52*37mm(L*W*H)
- Input Voltage: 90- /127
- Frequency Range: 47- 63Hz
- Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 12A(5V), 8.5A(12V), 6.7A(15V), 4.2A(24V), 2.8A(36V), 2.1A(48V)
- Rated Power: 60W(5V), 102W(12V), 100.5W(15V), 100.8W(24V), 100.8W(36V), 100.8W(48V)
- AC Current: 2.2A 1.2A
- Leakage Current: 0.
- Working Temperature: -25℃-+70℃
- Working Humidity: 20-90% RH Non-condensing
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Low-voltage LED systems, Controller and strip power, Signage and display BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The series LED drivers, epoxy encapsulated with IP67 level for harsh conditions, can be used in a rainy or wet location. With constant voltage design and universal AC input, the input range is from to making it easy to connect directly to the public power system. Various output voltage and loading power waterproof LED drivers are available; the installer can choose the or with a max loading power of up to 100W. The installer can use it for LED decoration, LED-related fixtures, or advertisement devices, etc.
Constant Voltage Design
Universal AC Input Full Range
Fully Encapsulated With IP67 Level Waterproof
Withstand Surge Input For 5 Seconds
Protections: Short Circuit Overload Over Voltage
Fully Isolated Plastic Case
Cooling By Free Air Convection
100% Full Load Burn-in Test
Low Cost, High Reliability
Link: LPV 100 Manual

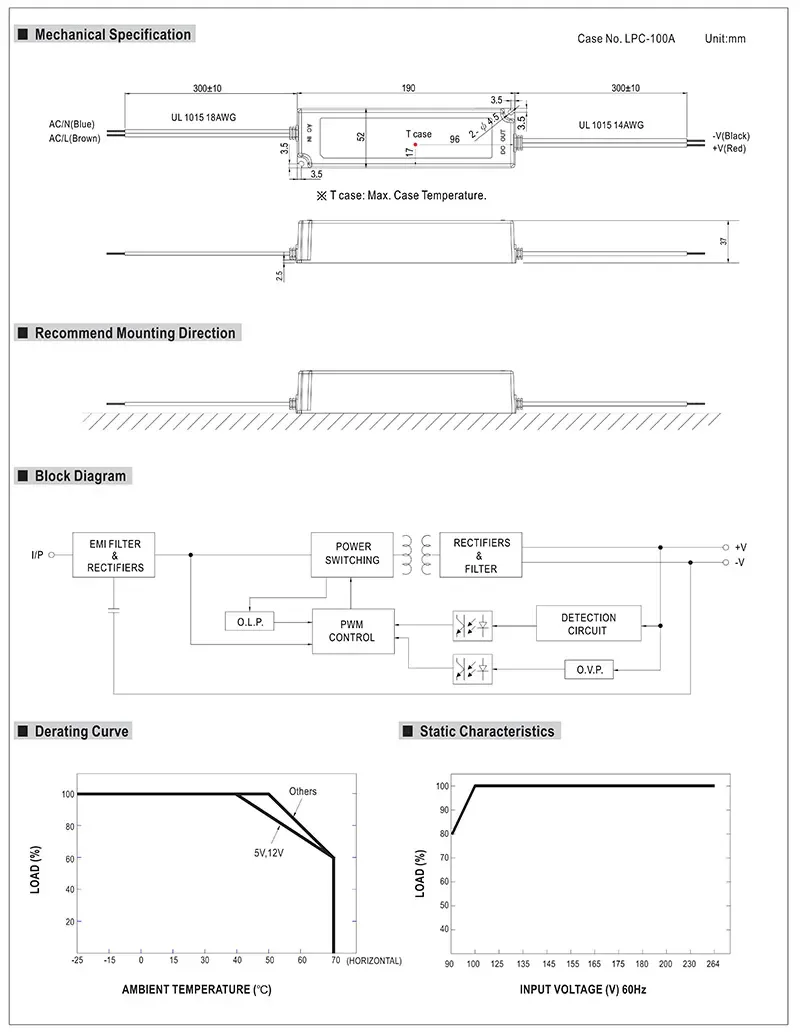

Specifications
Model
Size: 190*52*37mm(L*W*H)
Input Voltage: 90- /127
Hold Up Time At Full Load
Frequency Range: 47- 63Hz
Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
Rated Current: 12A(5V), 8.5A(12V), 6.7A(15V), 4.2A(24V), 2.8A(36V), 2.1A(48V)
Rated Power: 60W(5V), 102W(12V), 100.5W(15V), 100.8W(24V), 100.8W(36V), 100.8W(48V)
Efficiency: 80%(5V), 85%(12V), 87%(15V), 88%(24V), 88%(36V), 89%(48V)
AC Current: 2.2A 1.2A
Leakage Current: 0.
Working Temperature: -25℃-+70℃
Working Humidity: 20-90% RH Non-condensing
Storage Temperature/Humidity: -40-+80℃, 10-95% RH
Vibration: 100-500Hz, 2G Period For Each Along X,Y,Z axes
Safety Standards. CSA.2 No 250.13-12, CSA.2 No.207 BIS (For -12, -24 Only), EAC TP TC 004, -1, BS EN/-1 Approved
Withstand Voltage: I/P-O/P
Isolation Resistance: I/P-O/P:>100M Ohms//25℃/70% RH
EMC Emission: Compliance To BS EN/Class B, BS EN/-3-2 Class A(<80% Load), BS EN/-3-3. EAC TP TC 020
EMC IMMUNITY: Compliance To BS EN/-4-2,3,4,5,6,8,11; BS EN Light Industry Level, EAC TP TC 020
Short Circuit Protection
Overload Protection
Over-Voltage Protection
Cooling By Free Air Convection
100% Full Load Burn-in Test
Includes
1 * LED Driver
Product resources
Technical documents
Typical applications
- Low-voltage LED systems
- Controller and strip power
- Signage and display BOMs
