3014 narrow dimmable CCT LED strip
LumaCircuit offers 3MM SMD 3014 LED Strips Dimmable as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: 3mm 3014 LED Strips Colors: Neutral White(4000-4500K), Warm White(2800-3200K), Cool White(6000-6500K), Red, Green, Blue, Purple, Yellow, Ice Blue Waterproof Level: IP20 Non-waterproof The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

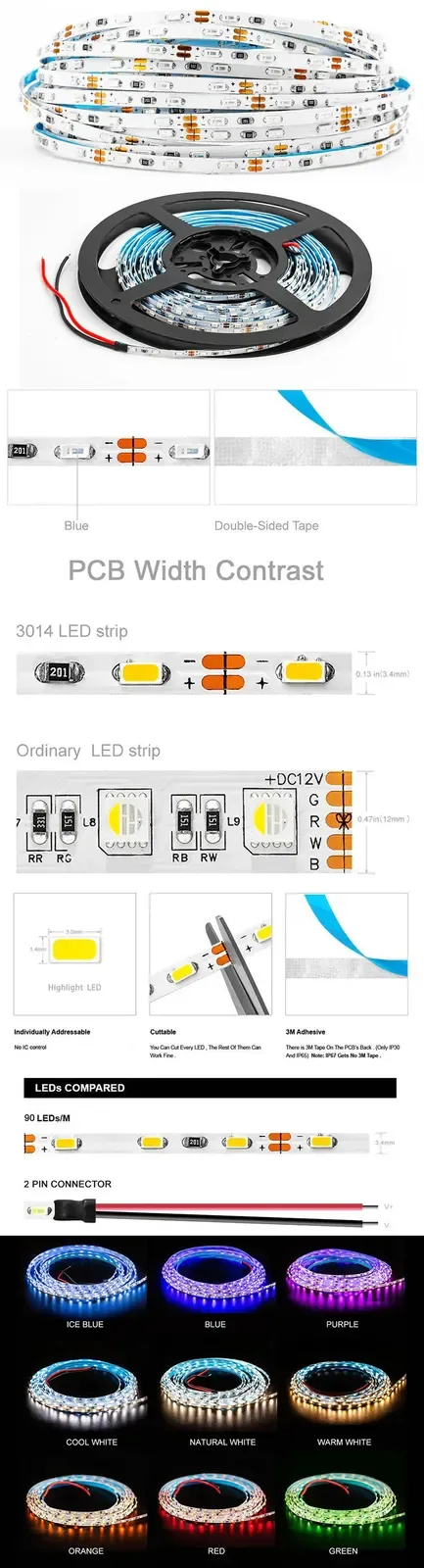

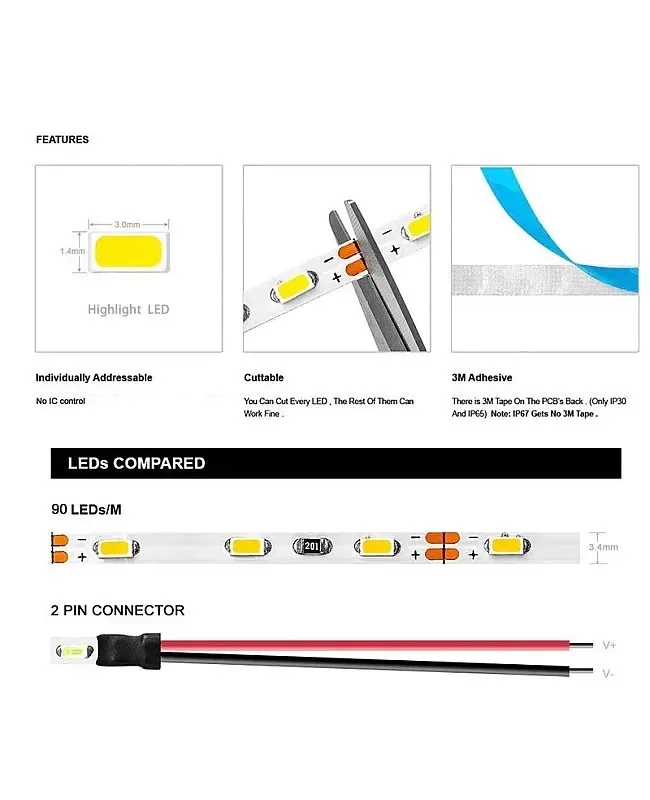

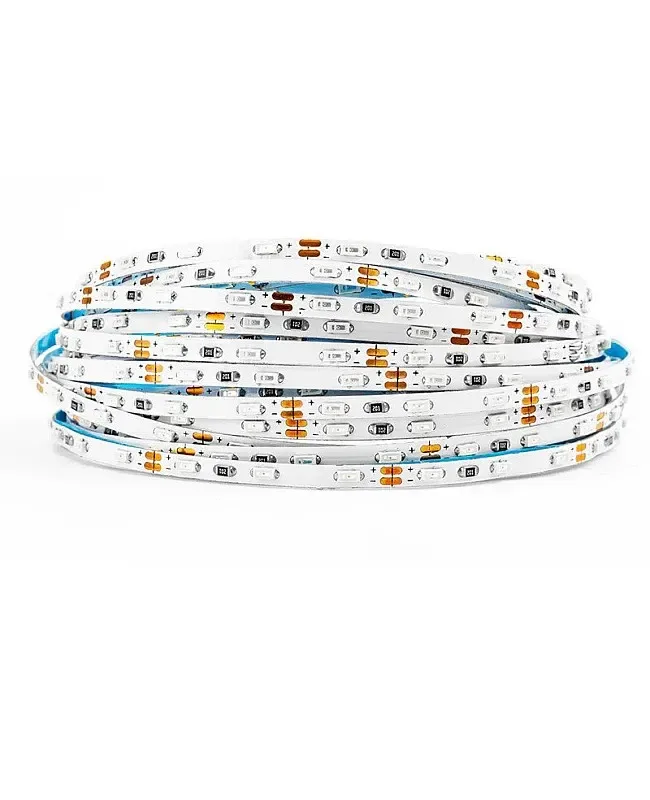

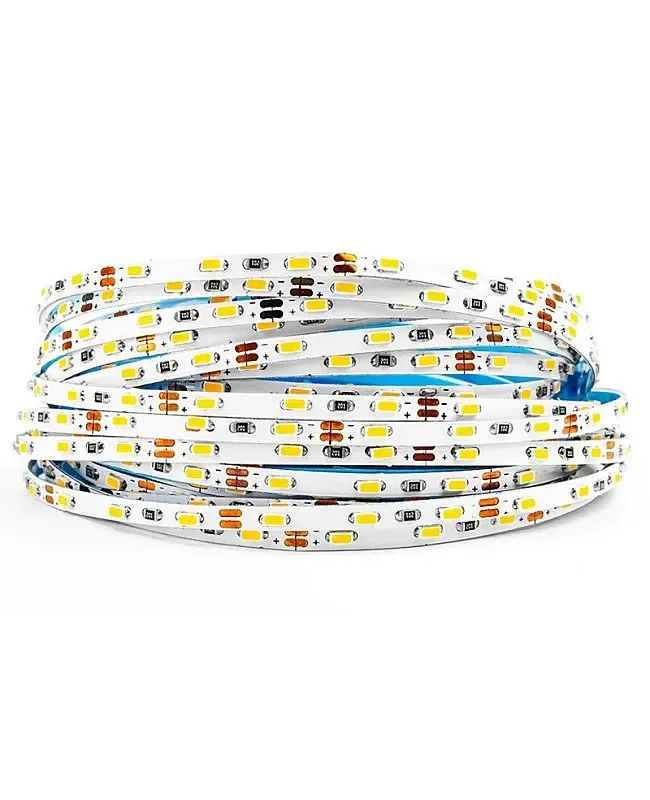

- The 3014 SMD LED strips have 90 SMD LEDs mounted on a one-meter dual-layer PCB board, flexible and bendable. The width is only 3mm, allowing it to be installed in a narrow location. The installer can install them under the cabinet, furniture, etc. 5 meters per reel and cuttable; the minimum cuttable length is 3.33cm, and the installer can cut to any length for your projects from the cutting marks.
- Type: 3mm 3014 LED Strips
- Colors: Neutral White(4000-4500K), Warm White(2800-3200K), Cool White(6000-6500K), Red, Green, Blue, Purple, Yellow, Ice Blue
- Waterproof Level: IP20 Non-waterproof
- Back With Double-Sided Adhesive Tape
- 1 * 3014 SMD LED Strips(5M/Reel)
- 3014 LED Strips, the width only 3mm, various colors available, the minimum cutting length only 3.33cm, can connect to a light dimmer to adjust the brightness.
- A production-ready strip family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT

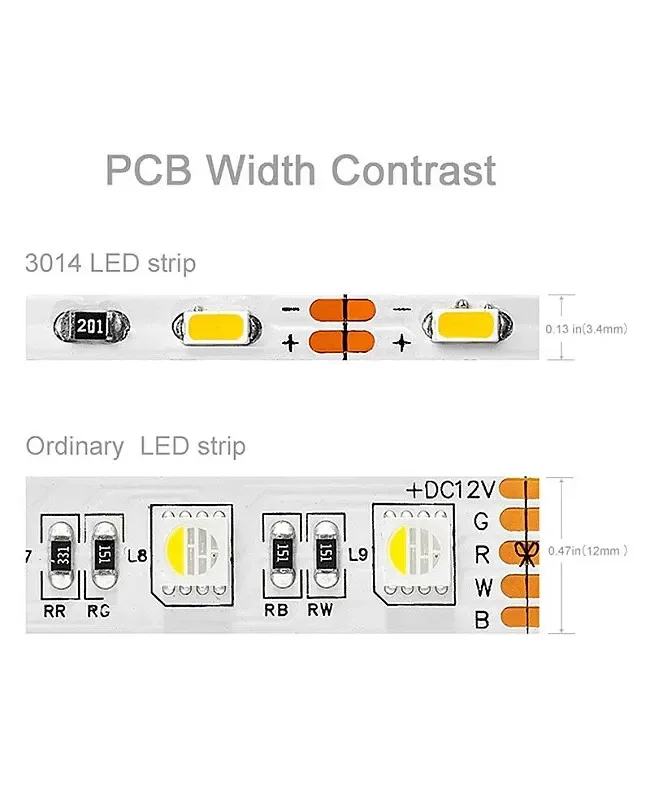

- Width: 3mm
- Length: 5M/Reel
- Working Voltage: DC12V
- Power: 9W/M
- LED Type: 3014 SMD
- LED Quantity: 90 PCS/M
- Colors: Neutral White(4000-4500K), Warm White(2800-3200K), Cool White(6000-6500K), Red, Green, Blue, Purple, Yellow, Ice Blue
- Mini-cut Length: 3.33cm
- LumaCircuit model: LC-STR-NGRG98
- Dimensions found: 3mm / 5M / 3MM
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

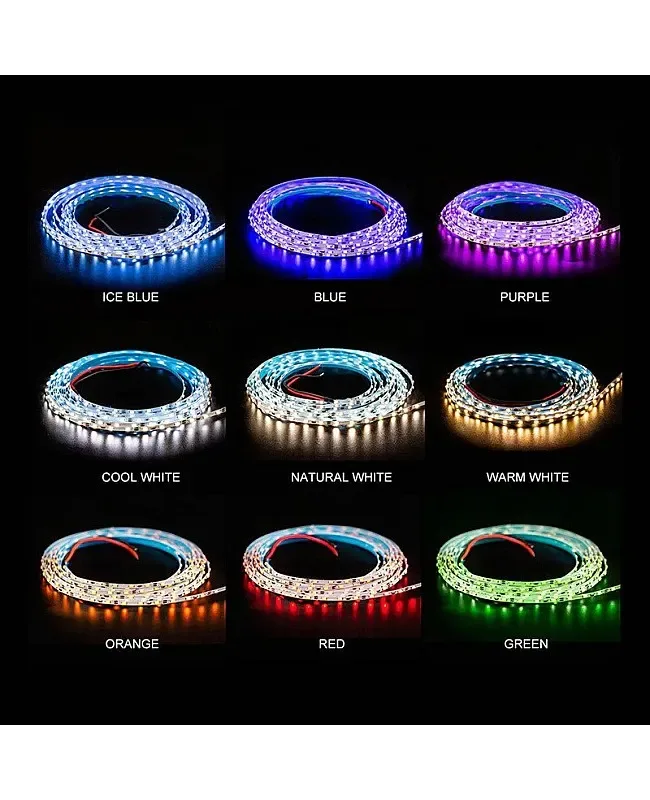

The 3014 SMD LED strips have 90 SMD LEDs mounted on a one-meter dual-layer PCB board, flexible and bendable. The width is only 3mm, allowing it to be installed in a narrow location. The installer can install them under the cabinet, furniture, etc. 5 meters per reel and cuttable; the minimum cuttable length is 3.33cm, and the installer can cut to any length for your projects from the cutting marks. The back has double-sided adhesive tape, so removing the protective paper from the 3M tape is easy, and the installer can stick it to the place you want to install it. The 3014 Strip Lights are non-waterproof and only recommended for indoor installation. The installer can choose various emitting colors from warm white, neutral white, cool white, red, green, blue, ice blue, purple, and yellow. It works on DC12V, making it easy to connect to the LED driver to light up. If you want to adjust the brightness, the installer can add an LED light dimmer to adjust the brightness freely.
Specifications
Type: 3mm 3014 LED Strips
Width: 3mm
Length: 5M/Reel
Working Voltage: DC12V
Power: 9W/M
LED Type: 3014 SMD
LED Quantity: 90 PCS/M
Colors: Neutral White(4000-4500K), Warm White(2800-3200K), Cool White(6000-6500K), Red, Green, Blue, Purple, Yellow, Ice Blue
Dimmable: YES
Waterproof Level: IP20 Non-waterproof

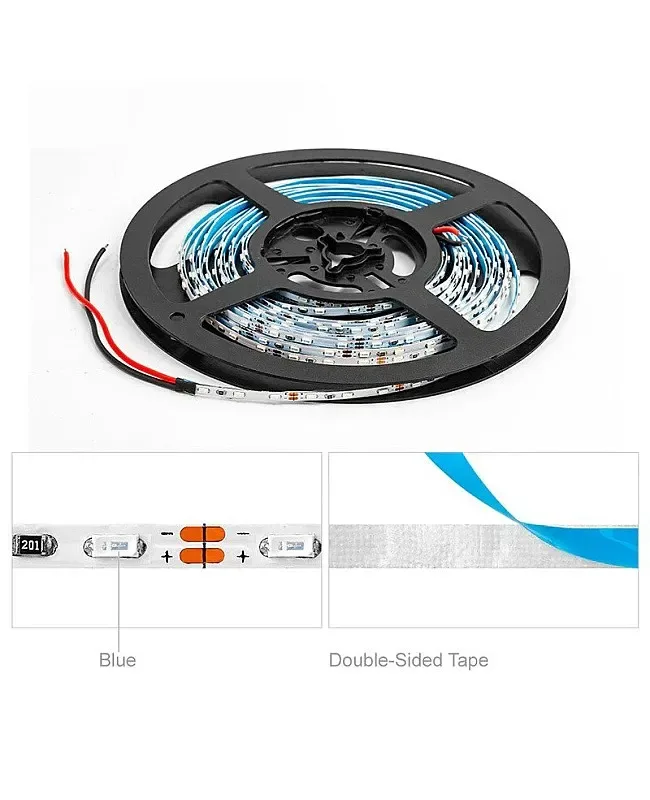

Back With Double-Sided Adhesive Tape
Mini-cut Length: 3.33cm
Includes
1 * 3014 SMD LED Strips(5M/Reel)
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
