Product details
24 V IP67 CCT COB LED strip
LumaCircuit offers Outdoor LED Strip Lights IP67 Waterproof Seamless Dotless 16.4FT as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Model: IP67 Waterproof COB LED Strips Chip Quantity: 360PCS/528PCS/640PCS Per Meter Width And Power: 360PCS/M-8MM-10W/M / 528PCS-8MM-10W/M / 528PCS-10MM-15W/M / 640PCS-10MM-16W/M The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

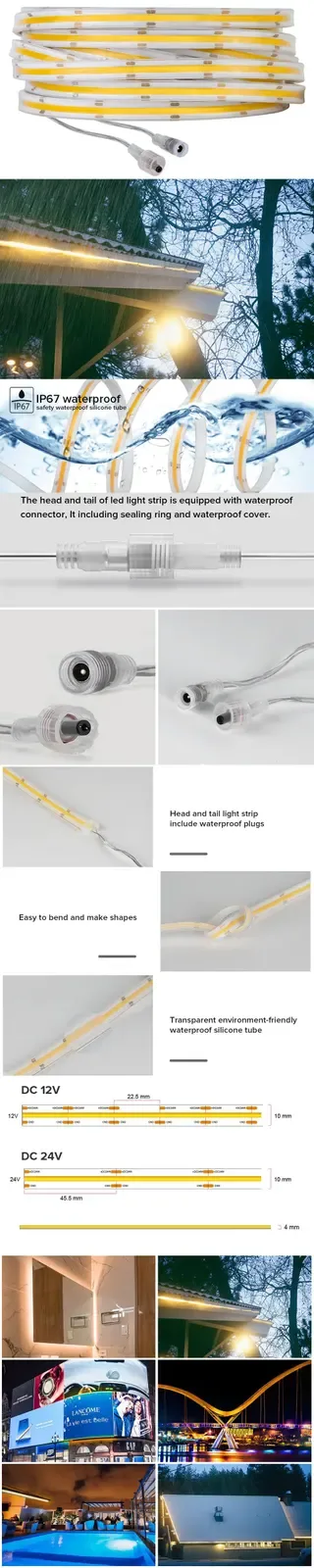

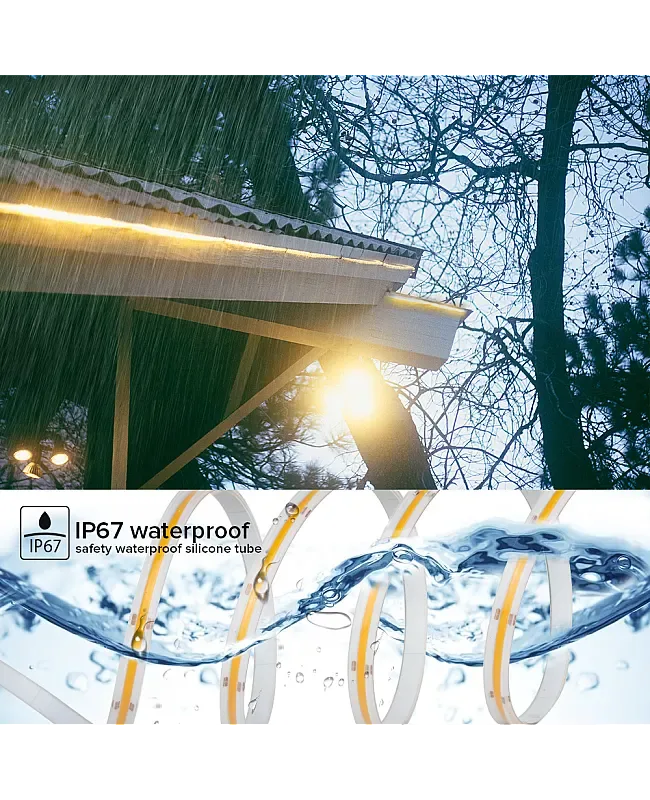

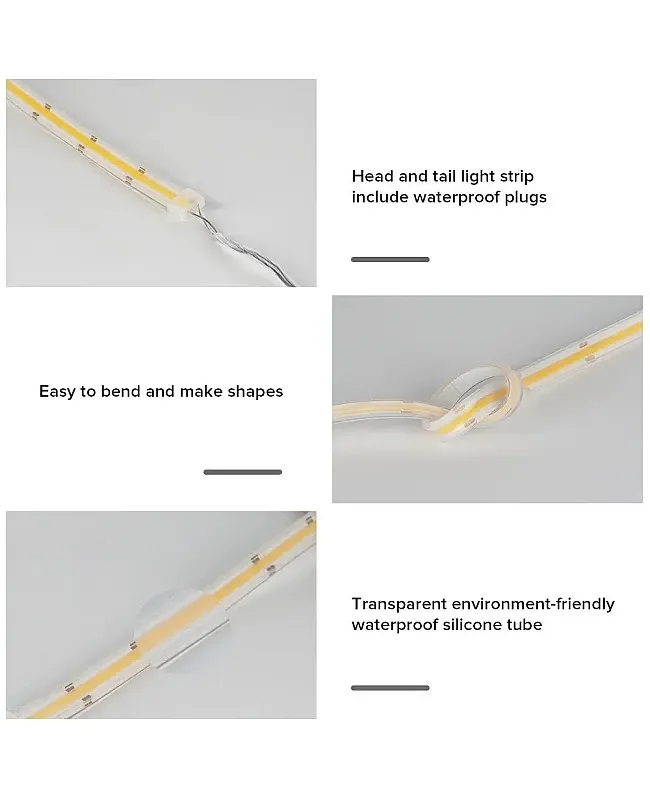

- The outdoor LED strip lights are sealed into the silicone tube, flexible, and bendable, allowing you to use them for outdoor applications, especially in rain or water locations. The silicone tube can effectively protect the light strips from water, and both ends are equipped with a waterproof DC connector, which includes a sealing ring and protective cover. The waterproof level is up to IP67; the installer can use them for outdoor lighting projects.
- Model: IP67 Waterproof COB LED Strips
- Chip Quantity: 360PCS/528PCS/640PCS Per Meter
- Width And Power: 360PCS/M-8MM-10W/M / 528PCS-8MM-10W/M / 528PCS-10MM-15W/M / 640PCS-10MM-16W/M
- Mini Cutting Length: 50mm(360PCS-8mm) / 45mm(528PCS-8mm) / 45.5mm(528PCS-10mm) / 25mm(640PCS-10mm)
- Colors: Warm White, Natural White, Cool White, Tunable White
- Color Temperature: Warm White(3000K) Natural White(4000K) Cool White(6000K) Tunable White(3000K-6500K)
- Color Rendering Index: >
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-XML4JQ
- Working Voltage: DC24V
- LED Chip Type: 0404
- LED Brand: San An
- Chip Quantity: 360PCS/528PCS/640PCS Per Meter
- Length: 16.4FT/Reel
- Width And Power: 360PCS/M-8MM-10W/M / 528PCS-8MM-10W/M / 528PCS-10MM-15W/M / 640PCS-10MM-16W/M
- Mini Cutting Length: 50mm(360PCS-8mm) / 45mm(528PCS-8mm) / 45.5mm(528PCS-10mm) / 25mm(640PCS-10mm)
- Colors: Warm White, Natural White, Cool White, Tunable White
- Color Temperature: Warm White(3000K) Natural White(4000K) Cool White(6000K) Tunable White(3000K-6500K)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

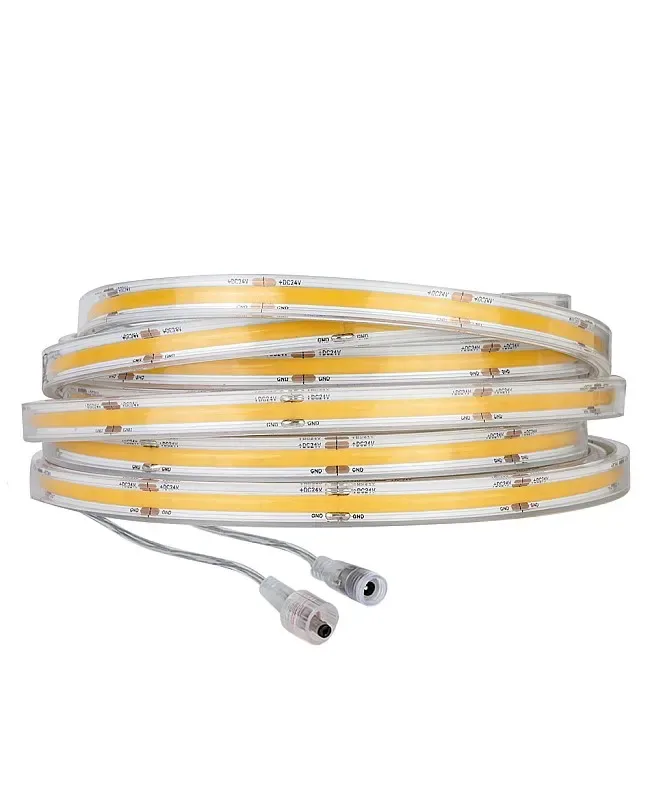

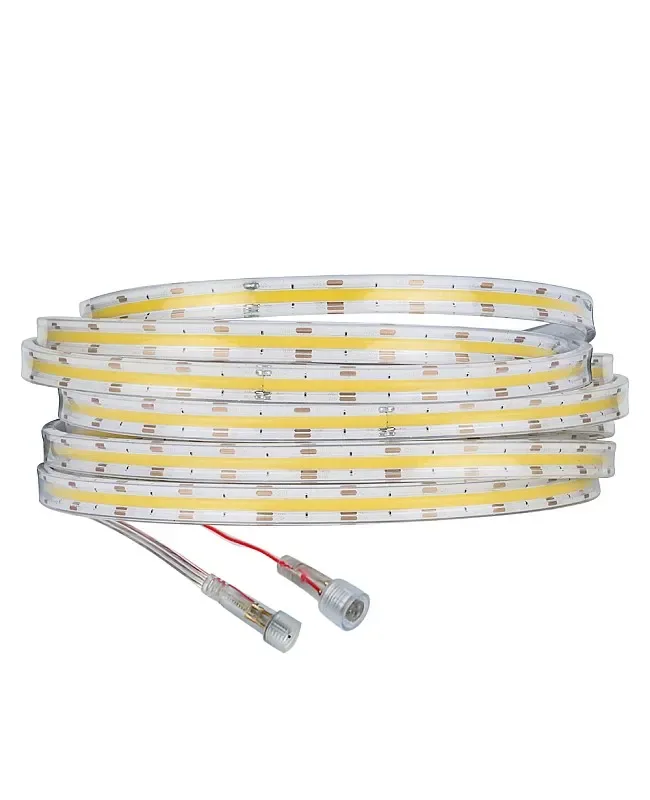

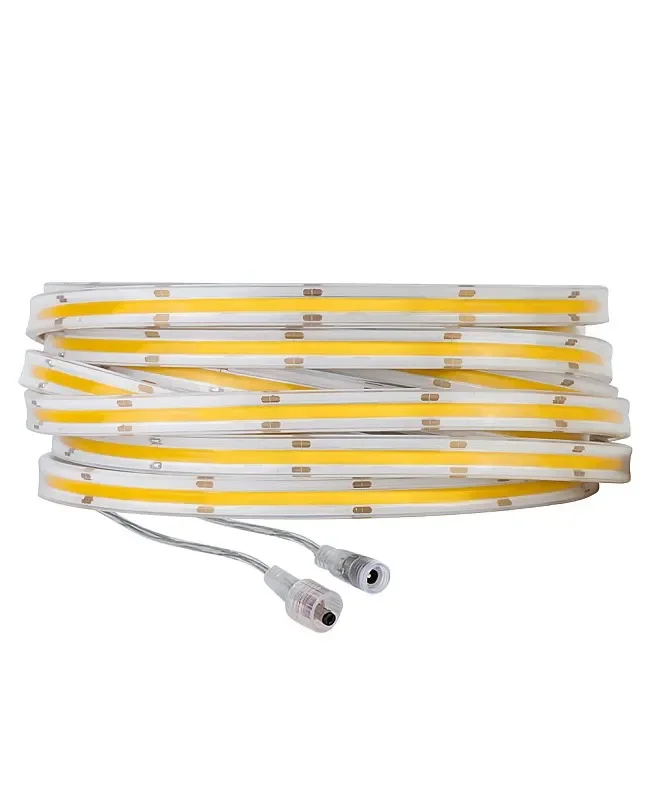

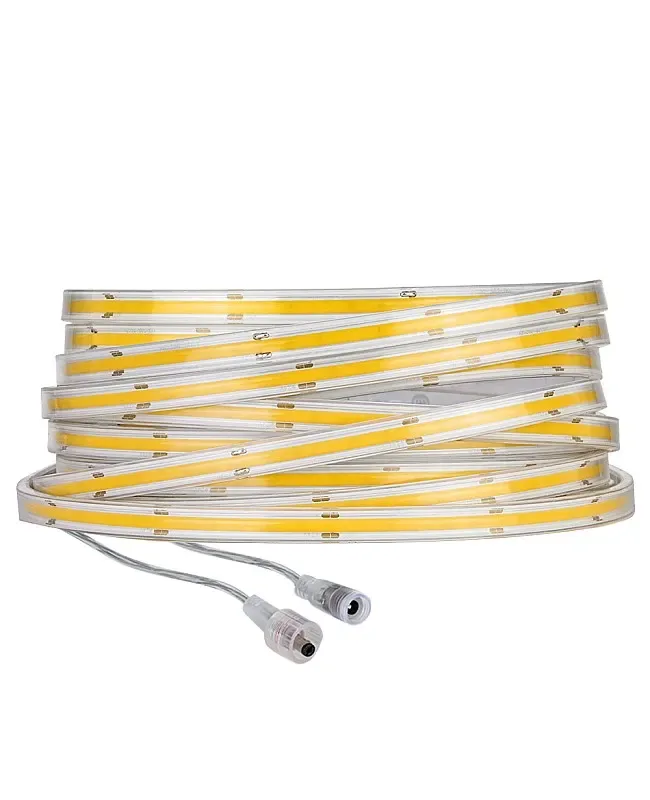

The outdoor LED strip lights are sealed into the silicone tube, flexible, and bendable, allowing you to use them for outdoor applications, especially in rain or water locations. The silicone tube can effectively protect the light strips from water, and both ends are equipped with a waterproof DC connector, which includes a sealing ring and protective cover. The waterproof level is up to IP67; the installer can use them for outdoor lighting projects. The outdoor LED lighting strips use the newest COB technology: Chip On Board; the 0404 Chips are mounted on the dual-layer PCB board, 360 PCS, 528 PCS, and 640 PCS per meter. The high-density chips allow the low-voltage light strips to be bright, have a higher color rendering index, no hot spots and visible light dots, and uniform light emission to create a seamless linear lighting effect for outdoor projects. Single-color and tunable white products are available, and the installer can choose products in various colors for your project. The outdoor LED strip lights are cuttable; the installer can cut them to any length for your project from the copper points and use the strip light connector to reconnect them. It is easy to connect to the dimmer or controller to adjust the brightness or color temperature for various scenes.
Specifications
Model: IP67 Waterproof COB LED Strips
Working Voltage: DC24V
LED Chip Type: 0404
LED Brand: San An
Chip Quantity: 360PCS/528PCS/640PCS Per Meter
Length: 16.4FT/Reel
Width And Power: 360PCS/M-8MM-10W/M / 528PCS-8MM-10W/M / 528PCS-10MM-15W/M / 640PCS-10MM-16W/M
Thickness: 4mm
Mini Cutting Length: 50mm(360PCS-8mm) / 45mm(528PCS-8mm) / 45.5mm(528PCS-10mm) / 25mm(640PCS-10mm)
Colors: Warm White, Natural White, Cool White, Tunable White
Color Temperature: Warm White(3000K) Natural White(4000K) Cool White(6000K) Tunable White(3000K-6500K)
Color Rendering Index: >
Waterproof Level: IP67
View Angle: 180°
Dimmable: YES
Cuttable: YES
Working Temperature: -20℃-+45℃
Storage Temperature: -20℃-+60℃

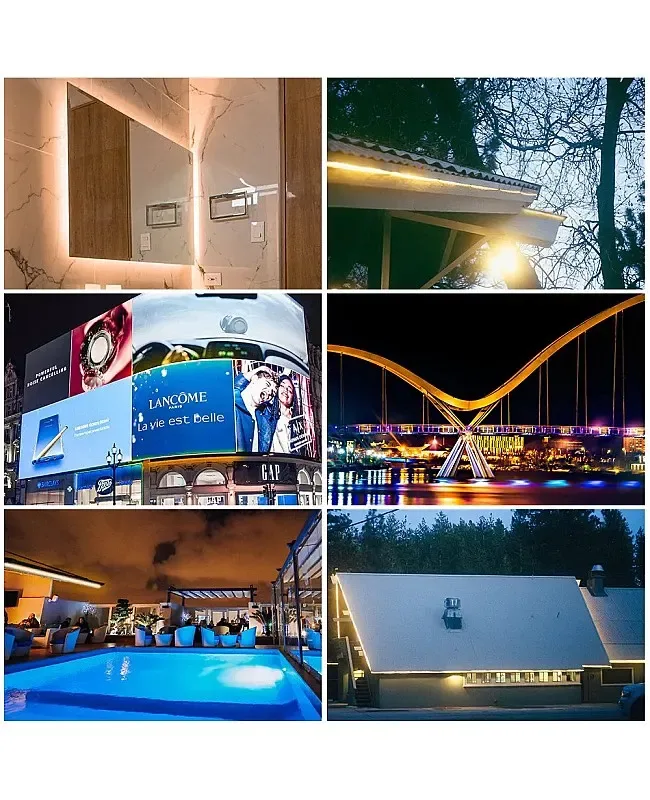

Applications: Stairs, Corridor, Bridge, Riverside, Pond Side, Park, Garden, Courtyard, Tree, Aquarium, Fish Tank, etc
Includes
1 * Dotless Waterproof Outdoor Strip Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
