Product details
IP65 COB CCT LED strip
LumaCircuit offers DC24V COB IP65 Waterproof LED Strip Lights Dimmable as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: DC12V/DC24V LED Quantity: 480LEDs/M, 528LEDs/M, 640LEDs/M Width: 8mm(480LEDs/M), 10mm(528LEDs/M And 640 LEDs/M) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The waterproof LED strip lights are great for indoor lighting projects. They are designed to be waterproof and dustproof, making them suited to use in wet areas. The waterproof COB LED light strip with cover uses chip-on-board technology, with more LED chips mounted on the PCB, creating a brighter, softer, spotless, and more uniform light without visible light dots or black areas. The COB strips have a silicone coating to protect them from water and dust.
- Working Voltage: DC12V/DC24V
- LED Quantity: 480LEDs/M, 528LEDs/M, 640LEDs/M
- Width: 8mm(480LEDs/M), 10mm(528LEDs/M And 640 LEDs/M)
- Power: 9W/M(480LEDs/M), 14W/M(528LEDs/M), 16W/M(640LEDs/M)
- Colors: Warm White(3000K), Nature White(4000K), Cool White(6000K), CCT(2700-6000K)
- 480LEDs: DC12V: 25mm; DC24V: 50mm;
- Color Rendering Index: >
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: CCT
- LumaCircuit model: LC-STR-XDKRW6
- Working Voltage: DC12V/DC24V
- LED Quantity: 480LEDs/M, 528LEDs/M, 640LEDs/M
- Width: 8mm(480LEDs/M), 10mm(528LEDs/M And 640 LEDs/M)
- Power: 9W/M(480LEDs/M), 14W/M(528LEDs/M), 16W/M(640LEDs/M)
- Colors: Warm White(3000K), Nature White(4000K), Cool White(6000K), CCT(2700-6000K)
- 480LEDs: DC12V: 25mm; DC24V: 50mm;
- 528LEDs: DC24V: 45.5mm;
- 640LEDs: DC24V: 25mm;
- Color Rendering Index: >
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

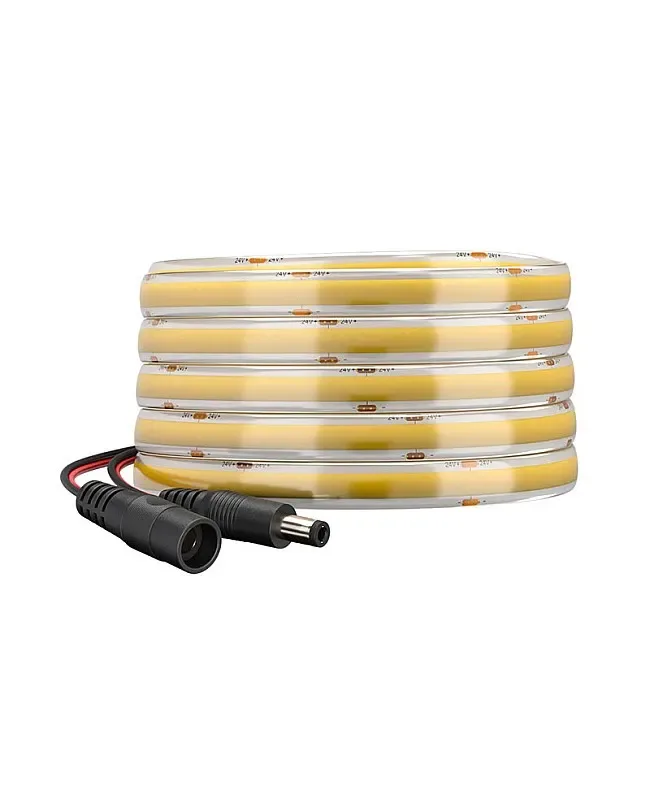

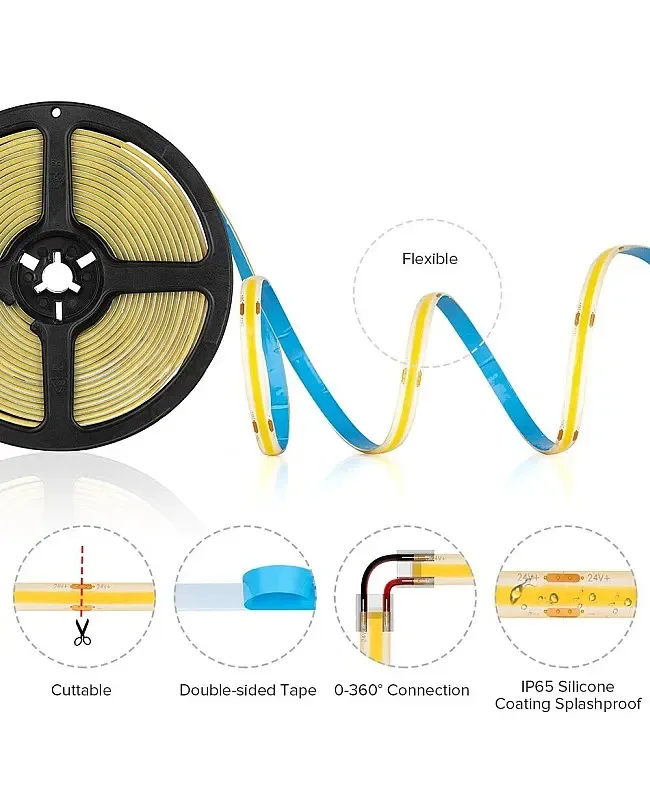

The waterproof LED strip lights are great for indoor lighting projects. They are designed to be waterproof and dustproof, making them suited to use in wet areas. The waterproof COB LED light strip with cover uses chip-on-board technology, with more LED chips mounted on the PCB, creating a brighter, softer, spotless, and more uniform light without visible light dots or black areas. The COB strips have a silicone coating to protect them from water and dust. The back has double-sided adhesive tape, making it easy to install them in bathrooms or other places with little water vapor. Three types of Weatherproof COB tapes are available: 480 LEDs/M, 528 LEDs/M, and 640 LEDs/M. The installer can choose the single-color and dual-white products. The 24V IP65 waterproof LED strip lights can be connected to light dimmers to adjust brightness to your desired level. The high-density LED strips are 16.4 feet per roll, and the installer can cut to the length you need from the copper points.
Specifications
Model
Working Voltage: DC12V/DC24V
LED Quantity: 480LEDs/M, 528LEDs/M, 640LEDs/M
Width: 8mm(480LEDs/M), 10mm(528LEDs/M And 640 LEDs/M)
Power: 9W/M(480LEDs/M), 14W/M(528LEDs/M), 16W/M(640LEDs/M)
Colors: Warm White(3000K), Nature White(4000K), Cool White(6000K), CCT(2700-6000K)
Minimum Cutting Length
480LEDs: DC12V: 25mm; DC24V: 50mm;
528LEDs: DC24V: 45.5mm;
640LEDs: DC24V: 25mm;
Color Rendering Index: >
View Angle: 180°
Dimmable: YES

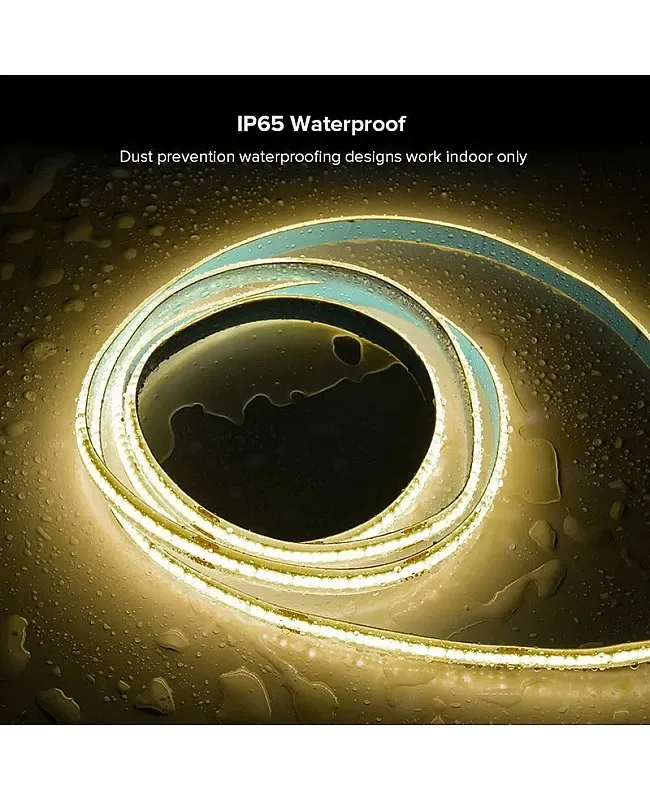

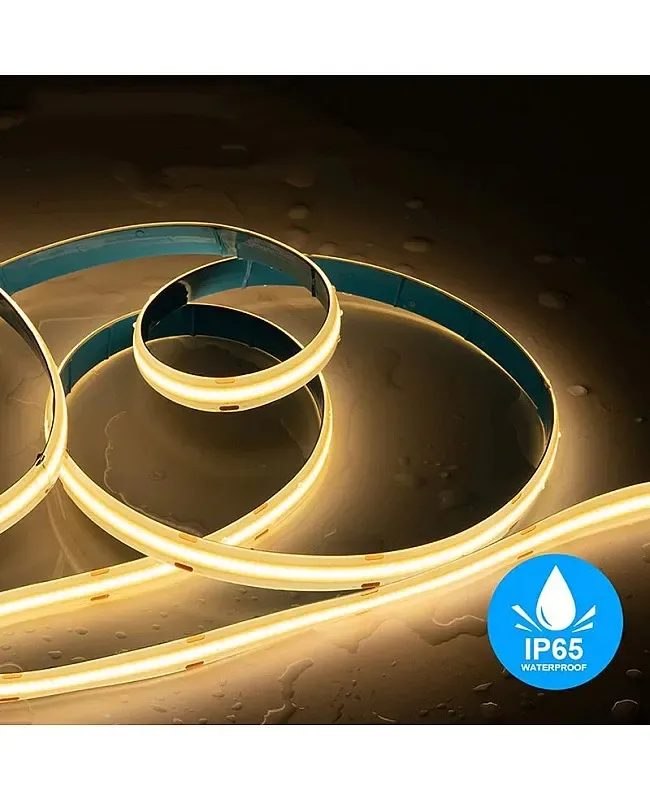

IP Rating: IP65 Waterproof And Dustproof
Back With Double-Sided Adhesive Tape
Applications: Kitchen, Cabinet, Bedroom, Stair, Mirror, Corridor, Toy Lighting, DIY, etc
Working Temperature; -20-45℃
Storage Temperature: -20-60℃
Includes
1 * Weatherproof COB LED Strip Lights(16.4FT/Roll)

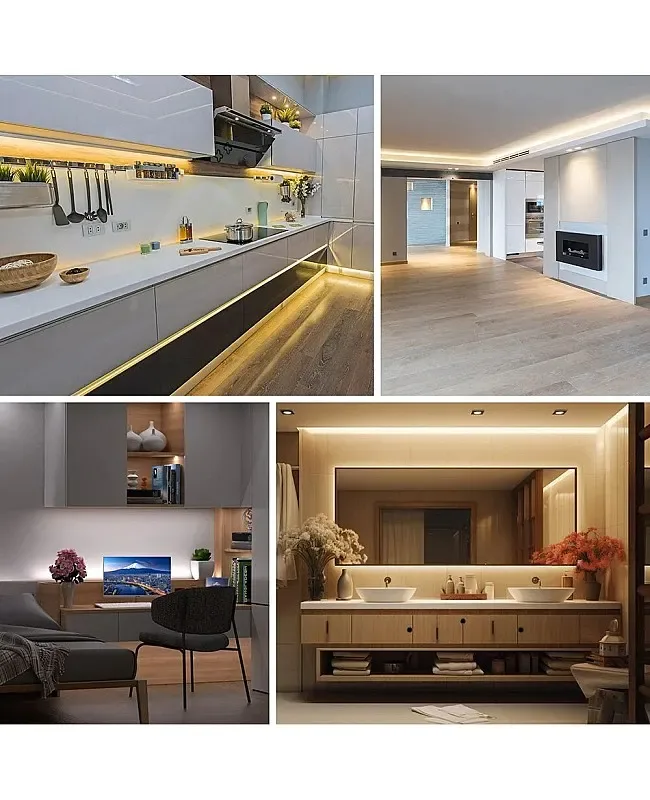

Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
