Product details

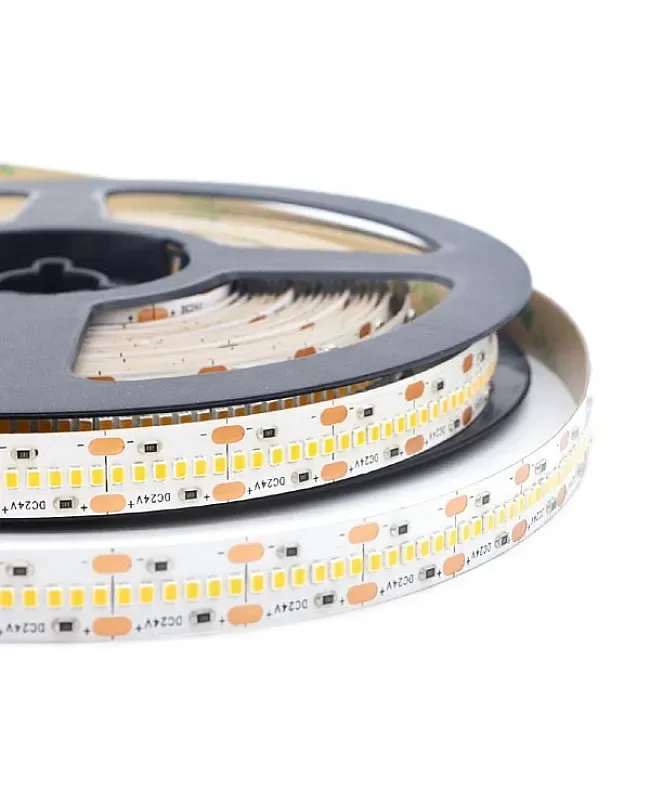

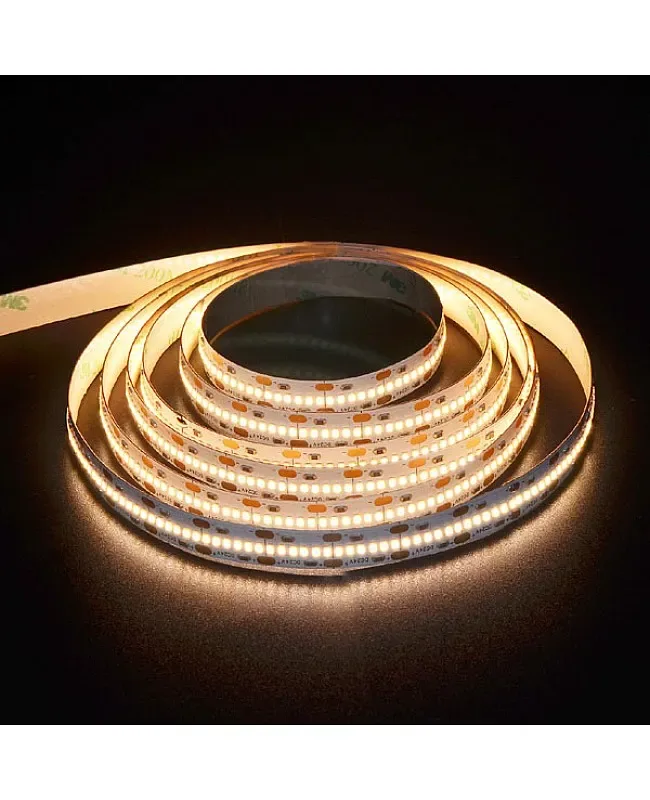

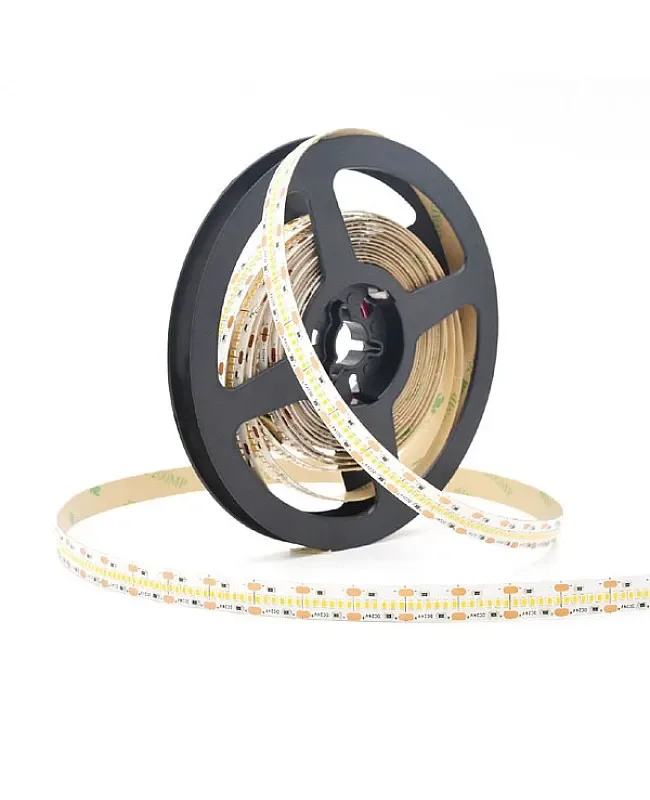

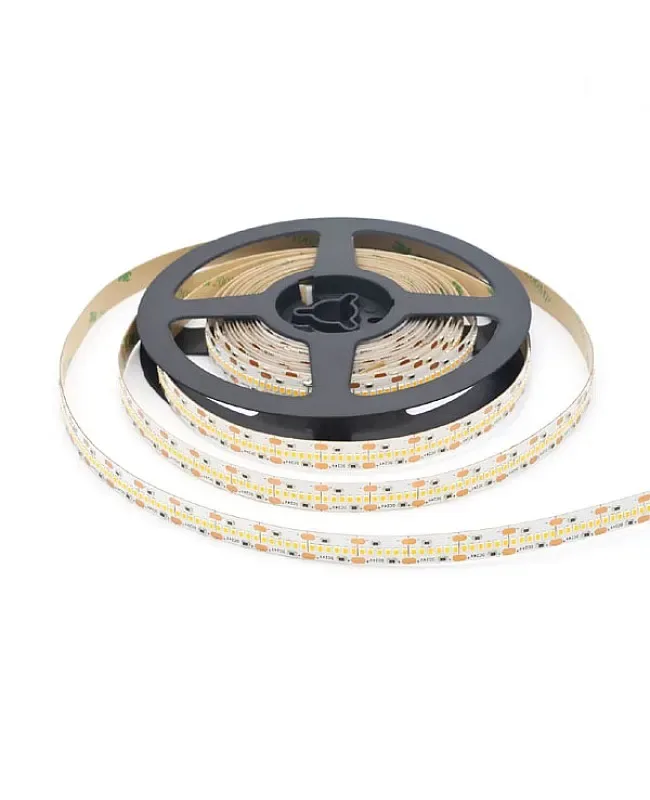

2216 CCT LED strip, 420 LEDs
LumaCircuit offers 2216 420 LEDs LED Tape Light as a configurable LED strip for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. LED Quantity: 420PCS/Meter Waterproof Level Available: IP20,IP65,IP67,IP68 1 * 2216 420 LEDs LED Tape Light The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Colors: Warm white(2700K/3000K/3500K)/Natural White(4000K/5000K)/Cool White(5700K/6000K/6500K)
- LED Quantity: 420PCS/Meter
- Waterproof Level Available: IP20,IP65,IP67,IP68
- 1 * 2216 420 LEDs LED Tape Light
- A production-ready strip family with a replaceable Zigbee control path.
- The configured light engine is CCT.
- The recorded electrical input is 24 V.
- Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: CCT
- LumaCircuit model: LC-STR-A5MJLQ
- Colors: Warm white(2700K/3000K/3500K)/Natural White(4000K/5000K)/Cool White(5700K/6000K/6500K)

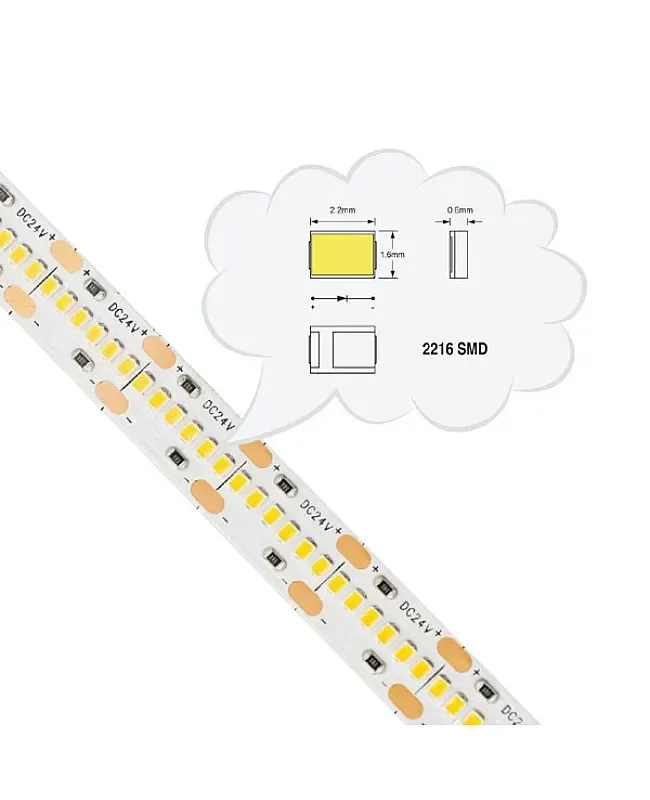

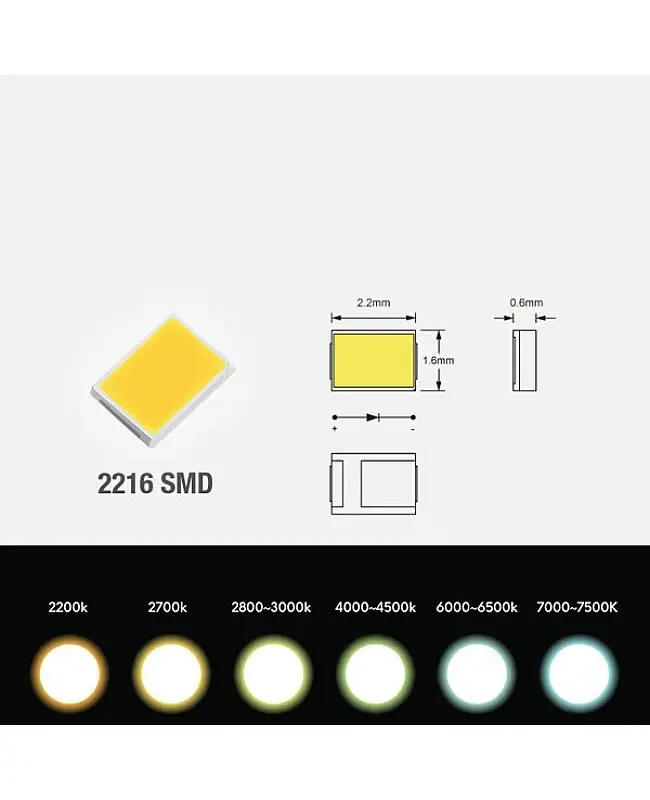

- LED Model: 2216
- LED Chip Brand: San An
- LED Quantity: 420PCS/Meter
- Length: 5 Meters/Reel
- Lumen: 5-6lm/LED
- Working Voltage: DC24V
- CRI: >90

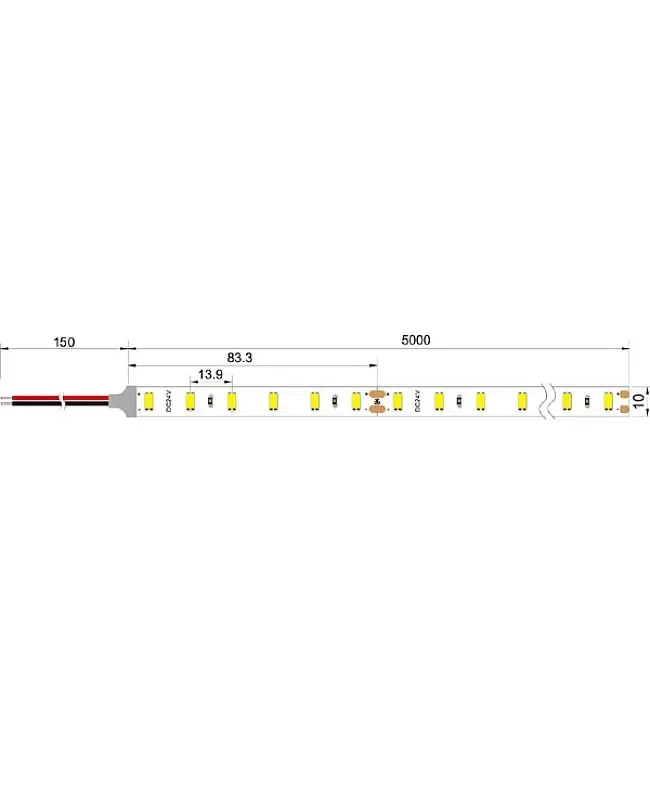

- Size: 5000*10*2mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Colors: Warm white(2700K/3000K/3500K)/Natural White(4000K/5000K)/Cool White(5700K/6000K/6500K)
LED Model: 2216
LED Chip Brand: San An
LED Quantity: 420PCS/Meter
Length: 5 Meters/Reel
Lumen: 5-6lm/LED
Working Voltage: DC24V
Size: 5000*10*2mm
Waterproof Level Available: IP20,IP65,IP67,IP68
Angel View: 120°
1 * 2216 420 LEDs LED Tape Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
